Commonly Overlooked Annual Inspection Items

Aerial Devices and Digger Derricks

1711uppf Terex P02

Aerial Devices and Digger Derricks

By Charlie Drummond

Owners of digger derrick and aerial devices are responsible for ensuring their equipment is inspected annually. This responsibility can mean more than just meeting requirements set by OSHA or ANSI. Thorough annual inspections are one of the key components to help ensure the equipment is safe for both the operator and crew members. While safety is the foremost concern, annual inspections can also reveal small operational issues before they cause serious, and possibly expensive, equipment repairs.

1711uppf Terex P02
1711uppf Terex P03

Annual inspections are a task to be performed by qualified people, such as Terex Utilities’ factory trained technicians who have access to the right tools to do the job correctly. Organizations with experienced service technicians may choose to perform and document these inspections in-house, or outsource to a third party.

When it’s time to conduct an annual inspection, expect the process to take three to six hours depending on the type of equipment being inspected. It’s a good idea to schedule annual inspections strategically to help minimize downtime of your fleet. Allow extra time for scheduled maintenance and based on the findings from the inspection; you may need to plan for additional required repairs to be performed. For insulated aerial lifts and digger derricks, it is recommended that the annual dielectric testing be done at the same time as the annual inspection.

While user manuals identify the items to be inspected, it takes someone with the proper training, knowledge and experience to ensure a thorough inspection is completed. An aerial lift or digger derrick is often sent to Terex Utilities for repairs after an annual inspection has been performed by another party. In many instances, these repairs can be minimized or eliminated by ensuring a timely and thorough inspection had been completed by a qualified factory trained technician.

According to factory trained technicians at Terex Service Centers, the following are some of the most frequently overlooked inspection items, listed in increasing order of seriousness. Most of them apply to either digger derricks or aerial devices, while the last two are specific to aerials.

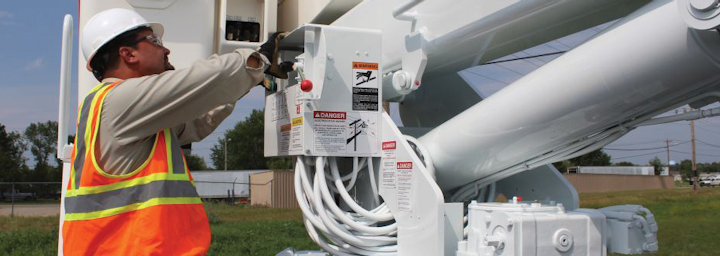

Missing Safety or Operational Decals: Operational and Safety decals provide valuable information to the users. Power washing equipment over the course of a year takes a toll on decals. Sometimes it’s not obvious what’s missing from the equipment if you don’t know what decals are supposed to be there. In particular, it’s especially important to make sure hand signal charts aren’t missing from digger derricks. The hand signals provide a means to communicate between the operator and ground personnel when they are in a noisy environment. Failure to communicate clearly could lead to possible injury or equipment damage and could result in an OSHA violation.

Hydraulic Oil Levels Not Maintained and Hydraulic Filters Not Replaced: Oil levels must be checked according to the manufacturer’s recommendations for equipment to operate as designed. More frequent checks based on operating and weather conditions may be necessary. Low levels, if left unattended, could lead to high dollar, unplanned repairs. Burning up one pump is easily a $2,000 repair, not to mention the loss in productivity from the equipment being out of service. Checking the fill level when the outriggers are extended can often lead to over filling. An overfilled system leaves no room for expansion, which can contribute to oil leakage. A dirty oil filter can lead to accelerated wear and damage to pumps, cylinders, hydraulic valves and hoses due to the filter no longer capturing harmful contaminants and particles circulating in the fluid.

Damaged Winch Rope: In addition to the daily visual inspection, the full length of the winch rope should be unspooled and inspected hand-over-hand during the annual inspection. When you feel cuts or a bulge—an indication of internal rope damage that can be caused by shock loading or kinking—the rope should be replaced. Additional inspection and replacement criteria are available from the rope manufacturers.

Rotation Bearing Bolts Not Torqued: While the process is simple, this is one of those items that cannot be overlooked. It may be easier to inspect and re-torque bolts with two people—one to rotate the bearing and the other to check the bolt torque. Information on the proper bolt torque and lubricant is available in the manual and on the Terex Utilities website. Failure to maintain proper torque could lead to bearing bolt failure due to overloading the remaining fasteners. It can also lead to bearing failure representing a $6,000 to $10,000 repair. For more information on how to check the torque on rotation bearing fasteners on Terex equipment, see the sidebar article.

Too Loose Bearing Deflection/Backlash: Checking the amount of allowable play in the rotation bearing takes time and a proper understanding of how to measure it. If there is too much play, this may be an indication that the rotation bearing could be worn and needs replaced. In addition, it could also be an indication the boom has been shock loaded. For more information on how to conduct a Rotation Bearing Deflection Test for Terex equipment, see the sidebar article.

Leveling Chain Has Too Much/Too Little Play: Leveling systems on aerial devices should have specific amounts of preload. Too much or too little tension increases wear and possible damage. Checking leveling tension requires taking the boom cover off. Failure to keep the chain within tolerance could affect the self-leveling of the bucket as the booms move through their range of motion.

Bucket and Liner Damage: Cracks, gouges and damage to the aerial device bucket could affect the structural integrity. Cracks, gouges and wear on the liner contribute to reducing dielectric strength. Often, we find that inspectors fail to remove the liner when looking at the bucket. Tools get dropped, often damaging the liner and the bucket itself, so look underneath, inside and out of the bucket.

Do it Yourself: Pros and Cons

While conducting your own annual inspections may seem the most affordable option, be sure to consider whether your technicians have the expertise required for the specific equipment. The same is true if you choose to outsource the inspection. If hiring someone else to do the inspection, make sure you choose a company that has qualified and trained technicians for the type of equipment being inspected. Someone who is trained and qualified to perform DOT inspections may not be qualified to perform aerial or digger derrick inspections. It is the owner’s/user’s responsibility to have qualified personnel perform the inspections.

To properly conduct the inspections, the technician should be a qualified person who possesses an appropriate technical degree, certificate, professional standing or skill, and who by knowledge, training and experience has demonstrated the ability to deal with problems relating to the subject matter work or project.

For those owners who perform annual inspections in-house, Terex offers several training programs designed to provide technicians with the knowledge to become a qualified inspector to conduct annual inspections.

There are a number of benefits to using the manufacturer’s inspection services. Terex Utilities offers DOT and ANSI annual inspections, five-year inspections, dielectric testing, inspection and maintenance for all makes and models of digger derricks and aerial devices. Terex Utilities will also check to ensure all updates, recalls or bulletin items have been addressed, and if a repair is under warranty, it’s simpler for the OEM to be involved from the start.

Qualified factory trained technicians at Terex Utilities receive on-going training to ensure they are staying current on new technologies and ever-changing equipment. UP

About the author: Charlie Drummond is a Terex Service Center branch manager in Richmond, Va.
