Energy management: DC-DC and AC-DC converter modules

Energy management: Compact, rugged 3U design provides global solutions for wayside signal and communication installation.

Aug 3rd, 2016
Content Dam Up En Articles 2016 08 Energy Management Dc Dc And Ac Dc Converter Modules Leftcolumn Article Thumbnailimage File

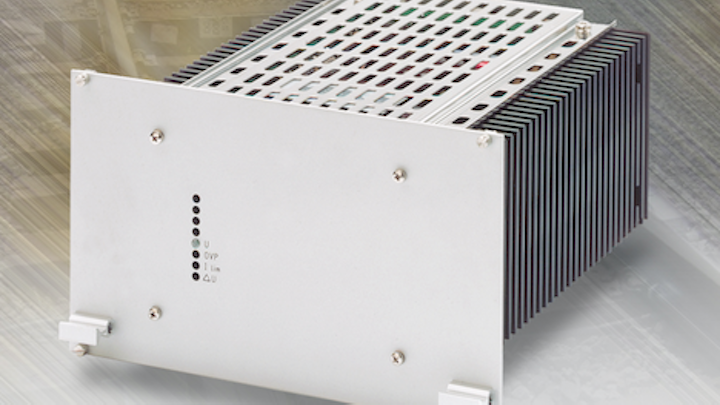

Energy management: Schaefer Inc. announces the C600 Series of DC-DC and AC-DC converter modules. The highly-reliable, compact and ultra-rugged 3U design uses industrial-grade components and provides a high-density, space saving solutions for wayside signal and communication installations globally. These units are ideal for redundant systems with two units per 19” sub-rack.

The highly efficient C600 Series delivers up to 500W of power and offers DC input voltage range of 10-380VDC with seven input range choices. AC input options are single-phase 115VAC or 230VAC (with or without PFC) or three-phase inputs of 3x200VAC. These modules are single output and are available in 12 standard ranges from 5-400VDC. All outputs are adjustable and tightly regulated to 0.2% (load) and 0.1% (line). Featuring natural convection cooling and a standard operating temperature range of –20°C to +75°C (derate 2.5% / °C from +55°C), with an option for -40°C to +75°C.

Modules are housed in an industry-standard 3U form factor for insertion into 19” sub-racks or optional wall, chassis and DIN-Rail mounting are available. Schaefer can also provide 19” sub-racks wired to customer requirements to complete the installation.

All models have comprehensive protection circuitry including over-voltage protection, current limit protection on the output, and thermal shutdown with auto restart. Options include parallel/redundant operation, inhibit, Power-OK/DC-OK alarms, system reset signaling, active current sharing and programming/monitoring functions, etc. Battery charger modules are available (B600 models). Mechanical and electrical modifications to standard modules are available upon request.

For more information about Schaefer or other products, click here to go to Utility Products’ Buyers Guide.
