Energy management: Industrial device networking and communication product solutions

Power management: Antaira Technologies’ offers new industrial managed gigabit combo port switches.

Content Dam Up En Articles 2016 04 Energy Management Industrial Device Networking And Communication Product Solutions Leftcolumn Article Thumbnailimage File

Energy management: Antaira Technologies is a developer and manufacturer of industrial device networking and communication product solutions for harsh environment applications and announces its expansion in the industrial networking infrastructure line with the LMX-1002C-SFP series.

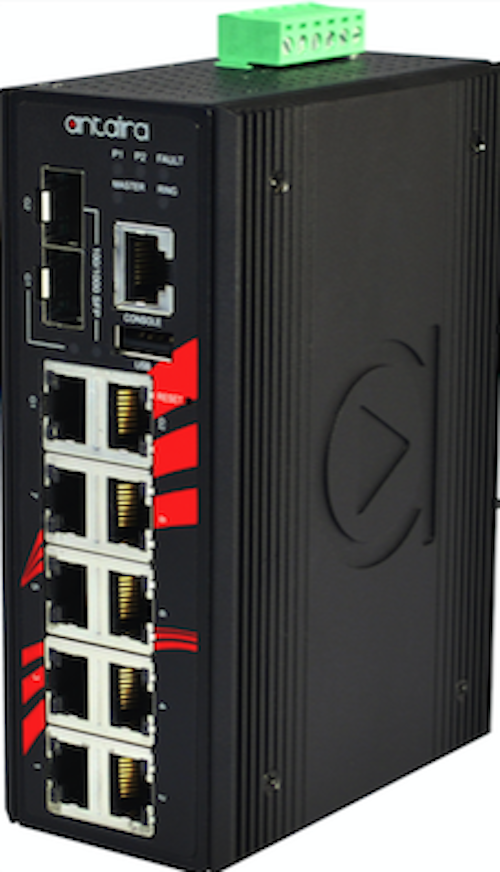

Antaira Technologies’ LMX-1002C-SFP series is a cost effective 10-port industrial gigabit managed Ethernet switch, that supports a 12~48VDC power input range. Each unit is designed with eight 10/100Tx Fast Ethernet RJ45 ports and two gigabit combo ports (2*10/100/1000Tx RJ45 or 2*100/1000 dual rate SFP slots for fiber). The combo ports provide flexibility to users for a network uplink by being able to use 100Mb, Gigabit Fast Ethernet or fiber-optics (when doing network distance expansion). This product series provides high EFT, surge (2,000VDC) and ESD (6,000VDC) protection. These units are built to have a dual power input design with a reverse polarity protection. The LMX-1002C-SFP series also includes a built-in relay warning function to alert maintainers when any ports break or power failures occur. This makes it ideal for applications in a harsh environment requiring high reliability and distance extension capability.

Antaira’s new LMX-1002C-SFP industrial gigabit managed Ethernet switch series has been designed to fulfill industrial automation applications in harsh or outdoor environments. Some of these harsh environments include: power/utility, solar grids, windmills, oil/gas platforms, mining infrastructures, factory or process control automation, ITS - roadway traffic control or monitoring, building facility infrastructures, security surveillance and access control systems.

This product series is pre-loaded with “Layer 2” network management software, of which, it supports the ease of use Web Console or Telnet using a serial console by CLI configuration. All Antaira managed switches provide the ring network redundancy function with STP/RSTP/MSTP and the ITU-T G.8032 (ERPS – Ethernet Ring Protection Switch) protocol which supports a <50ms network recovery time, eliminating the compatibility issue for any present networking concerns. The advanced network filtering and security functions, IGMP, VLAN, QoS, SNMP, Port lock, RMON, Modbus TCP and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control network. Lastly, the flexible “custom label” feature allows networking planners to name each connection port. By naming each port, the networking planners can easily manage remote field devices.

The LMX-1002C-SFP series is backed by a 5-year warranty and the units are IP30 rated, compact, fanless, and DIN-Rail/wall mountable. Each unit is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and extreme temperatures. There are two operating temperature version models for either standard temperature (-10 ~ 70°C) or extended temperature (-40 ~ 75°C). Each unit has the dimensions of 46mm (W) x 99mm (D) x 142mm (H) and a unit weight that is less than 2 pounds.

About Antaira Technologies
Antaira Technologies is a global leading developer and supplier that provides high-quality industrial networking and communication product solutions. Since 2005, Antaira has offered a full spectrum of product lines that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs. Our product lines range from industrial Ethernet switches, industrial wireless devices, Ethernet media converters, and serial communication devices. Our vast professional experience allows us to deploy a wide array of products worldwide in mission-critical applications across various markets, such as, automation, transportation, security, oil & gas, power/utility, and medical.

For more information about Antaira Technologies or other products, click here to go to Utility Products’ Buyers Guide.
