AEMC introduces MiniFlex AC current measurement probe line

The MiniFlex is a compact, flexible ac current transformer composed of a flexible sensor and an electronic module

Content Dam Etc Medialib Platform 7 Electric Light And Articles On Line Exclusive 2010 Images 98562

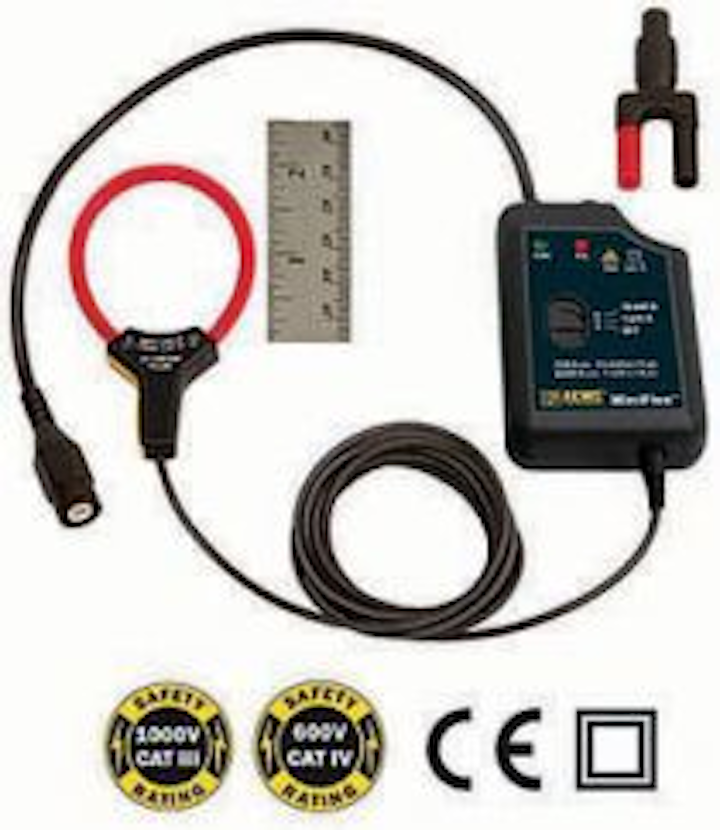

The MiniFlex is a compact, flexible ac current transformer composed of a flexible sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes could not be used. It can be installed in confined spaces, places where access is difficult, or even wrapped around irregular shapes.

The lightweight MiniFlex does not use magnetic cores like standard transformers. The transformation principle is based on an air core. It presents virtually no load to the system under test, has a low phase shift, very good frequency response, and cannot be damaged by overloads. The sensor assembly is insulated for 1000V CAT III and 600V CAT IV. The MiniFlex meets EN 61010 and is CE marked.

In addition, the MiniFlex has an mV output proportional to the current measured for direct readings on DMMs, data loggers, oscilloscopes, and power or harmonic meters. TRMS measurements are taken when connected to a TRMS meter. The MiniFlex is insensitive to dc currents and only the ac component of the measured signal is measured.

The flexible sensor is available in lengths of 6" and 10". The battery powered electronic module provides for OFF-LOW RANGE-HIGH RANGE selections with measurements from as low as 0.5A up to a high of 3000A, model dependent.

Applications include: power measurements, measurements on switchboards, measurements on thyristors, switching measurements (disconnecting switch, etc.), and display of control signals.
