Wide input ranges, 10 W dc/dc converters

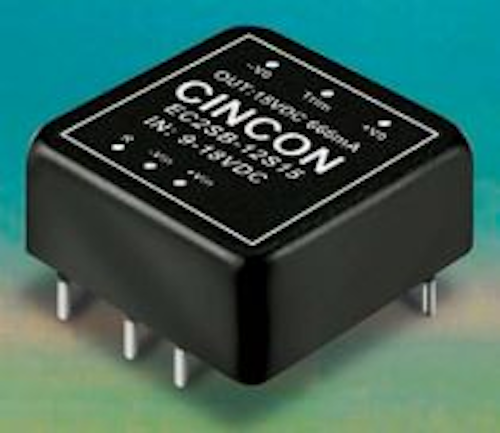

Power Sources Unlimited announces the new EC2SB(W) Series single and dual dc/dc converters

Content Dam Etc Medialib Platform 7 Electric Light And Articles On Line Exclusive 2010 Images 66982

Power Sources Unlimited announces the new EC2SB(W) Series single and dual dc/dc converters in a 1" x 1" package size; they are suitable for data communication equipment, process/industrial control equipment, telecommunication equipment and industrial computer systems.

The EC2SB Series features 2:1 input ranges of 9-18, 18-36 and 36-75 Vdc; single output ranges are 3.3, 5, 12, and 15 Vdc.

The EC2SBW Series have 4:1 input ranges of 9-36 and 18-75 Vdc; single output ranges are 3.3, 5, 12, and 15 Vdc; and dual output of ±5, ±12 and ±15 Vdc.

Standard features include output trim function of ±10%, remote ON/OFF control, over-current protection, continuous short-circuit protection, and operating temperature range of -40°C to +85°C and to +71°C with derating.
