Universal Adapter System Supports Field and Bench Techs

The Unidapt coaxial adapter system's key element is the small, universal adapter that is used to join any two Unidapt adapters with standard coaxial interfaces.

Content Dam Etc Medialib Platform 7 Electric Light And Articles On Line Exclusive 2010 Images 79771

The Unidapt coaxial adapter system's key element is the small, universal adapter that is used to join any two Unidapt adapters with standard coaxial interfaces to create literally hundreds of different adapters on the fly.

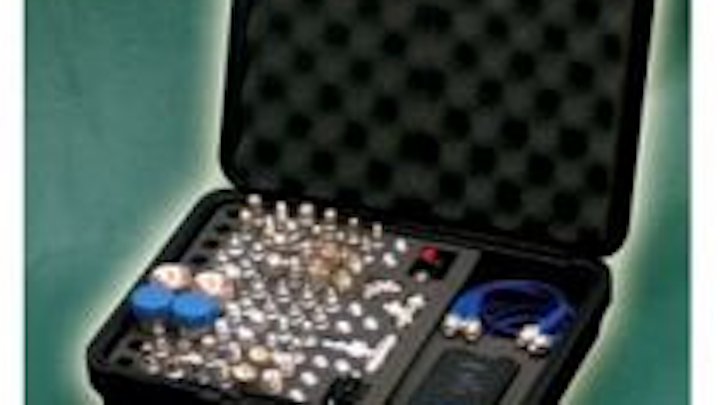

The 74-piece RFA-4022 Unidapt Mega-Plus kit contains everything needed to troubleshoot and test 7-16 DIN, BNC, F, Mini-UHF, MCX, MMCX, N, RCA, reverse polarity SMA and TNC, SMA, SMB, TNC and UHF terminated devices. In addition to 55 standard straight adapters, this kit contains a universal tee, a universal right angle adapter, RF sampler and injector for use of up to 3 GHz, binding post adapter, banana plug adapter, two 48-inch Unicables, barrel adapter for joining Unicables and the Unidapt coaxial cable tester. All coaxial components feature silver-plated brass bodies, gold-plated contacts and Teflon insulation. The Unicables feature universal adapter terminations and double-shielded RG-58A/U cable.

RF Connectors Div., RF Industries
