Energy management: Rugged 5kW power converter for harsh environments

Power management: Schaefer introduces the C/B 4800 Series of 6U DC/DC and AC/DC converter modules ranging in output power up to 5kW.

Content Dam Up En Articles 2016 06 Energy Management Rugged 5kw Power Converter For Harsh Environments Leftcolumn Article Thumbnailimage File

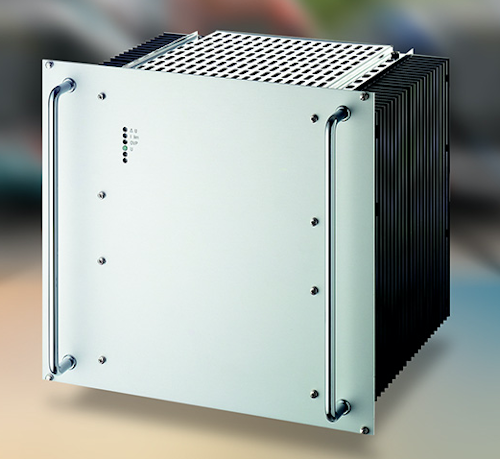

Energy management: Schaefer Inc. introduces the C/B 4800 Series of 6U DC/DC and AC/DC converter modules ranging in output power up to 5kW. The rugged design uses industrial grade components and provides a high density, space-saving solution for applications in industries such as telecommunication systems, process control systems, power stations, railway controls and communications equipment (onboard and trackside), military applications, oil rigs applications, fuel cell applications and transportation.

Nine DC input ranges are standard: 10-16V, 20-32V, 40-64V, 50-80V, 80-160V, 160-320V, 320-640V and 450-800V. AC input options are 1-Phase 115VAC or 230VAC, as well as 3-Phase inputs of 3 x 200VAC, 3 x 400VAC, or 3 x 480VAC. Battery charging models are also available. Units feature single outputs in 10 standard ranges from 12-400VDC. All outputs are adjustable and tightly regulated to 0.2% or better (load) and 0.1% (line). Custom input and output ranges are readily available.

All modules in the C/B 4800 Series feature a standard operating temperature of -20°C to +75°C (derate above +55°C), with an option for -40°C. The C4800 models have comprehensive protection circuitry including overvoltage, overload, short circuit protection, and thermal shutdown with auto restart. Efficiencies are up to 92%. EMI performance is to EN55022 Class A standards (Class B optional).

Units are packaged in a rugged 6U x 56TE x 306mm (HxWxD) module with an optional wall mount configuration. Other options include input inrush current limiting, DC input reverse polarity protection, output parallel/redundant operation, remote on/off, Power Fail/DC-OK alarms, system reset, and programming/monitoring functions. Further mechanical "ruggedization" and extended environmental operating conditions for higher temperatures and humidity is also available.
