Utility equipment: 18V cordless hydraulic crimping tool from Hi-Line Utility Supply

Utility supplies: The professional tool is for overhead lines and residential service applications.

Content Dam Up En Articles 2013 10 Utility Equipment 18v Cordless Hydraulic Crimping Tool From Hi Line Utility Supply Leftcolumn Article Thumbnailimage File

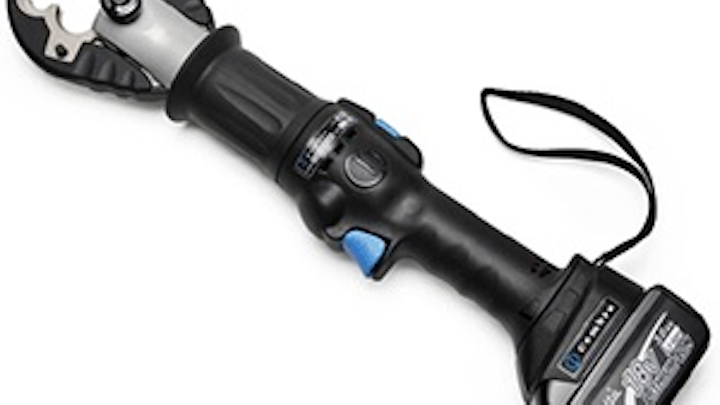

Line construction: Hi-Line Utility Supply’s 18V cordless hydraulic crimping tool is for overhead lines and residential service applications.

Features:
• Designed for Confined Space: Jaws Rotate by 180° and One-Hand Operation
• 6-Tons of Output Force
• 380 Crimps per Charge (4/0 - 4/0 Al)
• 18V 3 Ah Lithium-Ion Battery (2 Included)
• Accepts "W" & "X" Dies (except IPBK)
• 7 lbs Weight
• 5-year Tool and 1-year Battery Life

Crimping Capacity:
• CDD6: "D3" to accept all "W" Style Crimping Dies and "BG" fixed groove
• CDD6-8: "D3" to accept all "W' Style Crimping Dies and "O" fixed groove
• CDK: Groove to accept all "O' Style Kearney Crimping Dies; Adapter to Accept All "W' Style Crimping Dies Available Upon Request

Cutting Capacity
• CMB1: 4AWG Alumoweld, ACSR 4/0
• CMB2: # 8 Copperweld; 4/0 Cu.;336 MCM Aluminium; 477 MCM ACSR (Str. 26/7)
• CMB3: 3/8" Guy Wire

For more information about Hi-Line Utility Supply or other products, click here to go to Utility Products’ Buyers Guide.
