Line Construction: 10 Tips for a Successful Crane Setup

This article was written by DICA CEO Kris Koberg at the invitation of Construccion Pan Americano. The article was translated into Spanish and appeared in Construccion Pan Americano’s spring 2015 crane issue. Additional information on safe setups can be found in the training section of our website.

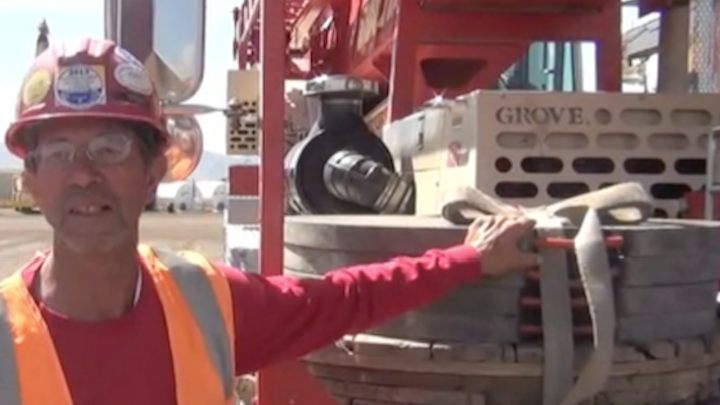

Content Dam Up En Articles 2017 12 Line Construction 10 Tips For A Successful Crane Setup Leftcolumn Article Thumbnailimage File

Construction equipment: It can be difficult to know if the ground beneath your crane will support the weight and pressure under your outriggers, yet knowing this is critical to safe crane setup. In response to this need, U.S. standards and regulatory bodies now place greater emphasis on understanding ground conditions and using crane mats or outrigger pads that are sufficient to provide the necessary foundation support.

Here are 10 crane safety tips to guide you to a successful crane setup:

1. Know your responsibilities. In the U.S., OSHA states that cranes must be assembled on ground that is firm, drained and graded sufficiently, in conjunction with supporting materials, such as blocking, cribbing, pads, mats, to provide adequate support and levelness. (OSHA 1926.1402)

ASME states that outrigger blocking or cribbing must have sufficient strength to prevent crushing, bending, or shear failure. And it needs to be of such thickness, width and length as to completely support the float, transmit the load to the supporting surface, and prevent shifting, toppling or excessive settlement under the load. (ASME B30.5-2011)

2. Know the bearing strength of the ground and soils. Because this is an extremely complex combination, it’s a good idea to seek the advice of a geotechnical engineer. A low-cost way to determine ground conditions is to use a Dynamic Cone Penetrometer, which is portable and easy-to-use. This information can be compared to ground bearing pressure charts for different soil types.

3. Identify any sub-surface hazards and avoid if possible.

4. Evaluate and improve the ground if needed. Ways to improve the ground include compaction, removing un-compacted surface layers, or bringing in rock or other dense inorganic material. If the ground is wet, allow time to get the moisture out.

5. Know the maximum pressure the crane will exert on each outrigger during the operation, or the maximum outrigger reaction force. Crane manufacturers provide this information for each crane model, and generally it can be found in your operation manual. Many also offer free software solutions that allow you to input the lift data, which then outputs the outrigger reaction forces that will be generated.

6. Select the right size outrigger pad or crane pad. Undersized pads can put you in an unstable condition, but oversized pads are inefficient in terms of purchase, labor, and transportation costs. Several methods are commonly used in the industry. DICA has evaluated each of these and have found that various methods produce widely varying conclusions and most methods don’t take into account the ground condition. DICA strongly suggests that you should use a sizing method that takes into account ground conditions (ground bearing capacity), and actual outrigger loads.

7. Choose crane pads or outrigger pads that are designed and constructed to meet or exceed the bearing, flex and shear strength required. Their purpose is to distribute the load from the outrigger float over a large enough area that the bearing pressure to the ground surface is acceptable. They must be stiff enough that the crane will not go out of level as the load swings.

8. Never place blocking, cribbing, pads or mats under the outrigger beam. Only use them under the outrigger floats or pontoons.

9. Monitor every lift. If the outrigger pad or crane mat is deflecting or bending, stop the lift. If the pad or mat is being driven into the ground, stop the lift. The load pressure is in excess of the ground bearing pressure. A larger surface area or improved ground conditions are needed to support the load.

10. Use common sense. If doesn’t look right, stop. If it doesn’t act right, stop. If it doesn’t feel right, stop. Products are never a replacement for common sense. Use your common sense. You never know, the life you save may be your own.

DICA, Guthrie Center, Iowa, has been specializing in building a better outrigger pad since 1988. By creating engineered solutions for improving equipment stability and ergonomic crane safety, DICA is leading the way in product innovation for outrigger pads and crane mats. DICA outrigger pads and crane mats are used in 20+ countries and on 6 continents around the world in construction, maintenance, electrical utility, oil and gas and tree care as well as local, state and federal government agencies.

DICA employs a three-step fitting process, including identification of the key data points for the equipment and the maximum outrigger reaction force. Then we work with customers to determine soil bearing capacity. Finally, we determine the proper material, construction and thickness needed for the outrigger pad or crane mat to distribute the load over the intended area.
