Utility supplies: Bolted Wedge In-Line Disconnect Switch Line expanded

Utility supplies: BURNDY expands new Bolted Wedge In-Line Disconnect Switch Line. Features innovative bolted wedge hybrid connector.

Content Dam Up En Articles 2017 10 Utility Supplies Bolted Wedge In Line Disconnect Switch Line Expanded Leftcolumn Article Thumbnailimage File

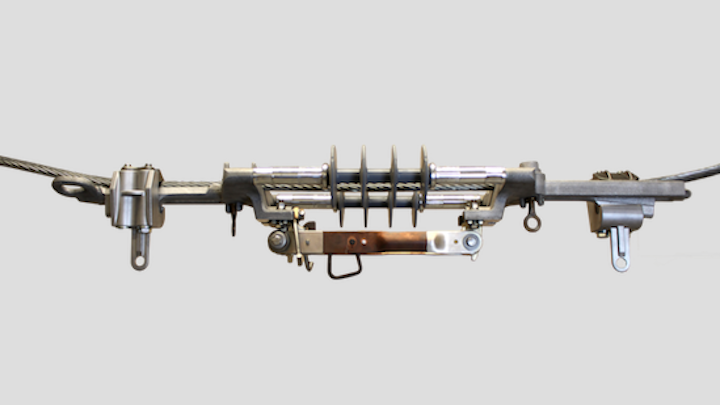

Utility supplies: BURNDY® announces the expansion of the Bolted Wedge In-Line Disconnect Switch family with the addition of the WADM795 switch line. The product line now accommodates conductors from 1/0 ACSR to 795 (36/1) ACSR, originally 556 ACSR. The new switches still utilize the innovative bolted wedge hybrid connector combined with industry standard components making them ideal for hot stick and gloved applications.

The Bolted Wedge In-Line Switch utilizes dual insulators to minimize switch movement during opening and closing of the blade. Installation steps are kept to a minimum as the switch can be snapped directly onto the line and secured with the BURNDY conductor pivot retainer. This retainer acts as a third hand to free up the line worker’s hands to safely install the connectors.

The innovative BURNDY bolted wedge connectors utilize bolted technology to provide a highly reliable mechanical and electrical connection and combines it with sliding wedge technology to ensure the connection stays tight even if the line experiences high mechanical loads. The hybrid design also takes some of the guess work out of tightening the hardware. Simply tighten the bolts near the recommended tightening torque and the hybrid system takes over.

In addition to improving the safety and reliability of the connection, the new Bolted Wedge Connector system also increases the range of conductors it accommodates. Three switches now accommodate conductors ranging from 1/0 ASCR up to 795 (36/1) ACSR. This increase in range taking ability reduces the number of different SKUs required by a utility for switching applications.

Headquartered in Manchester, New Hampshire has over 90 years of dedicated customer support in both service and product. Our customers need to look no further than BURNDY for all their connector, tool, and accessory needs. BURNDY is the only manufacturer to have the BURNDY® Engineered System of coordinating dies, connectors and tools. The three elements have been specifically designed to work together and engineered to meet stringent, accepted quality standards allowing the user complete confidence in the integrity of the connection.

For additional information, contact us at 47 East Industrial Park Drive, Manchester, New Hampshire 03109; call Customer Service at 1-800-346-4175; or visit our website at www.BURNDY.com.

Since 2009, BURNDY LLC has been a key brand under Hubbell Incorporated. More information can be found at www.Hubbell.com.

For more information about BURNDY, Hubbell, or other products, click here to go to Utility Products’ website. Or visit our Industry News and Equipment Showcase e-newsletters.
