Utility tools: Heavy Duty Insulated Multi-tap and In-Line splicer/reducers

Utility supplies: BURNDY announces the addition of a family of Heavy Duty Insulated Multi-tap and In-Line splicer/reducers to our current offering of UNITAP connectors.

Content Dam Up En Articles 2017 07 Utility Tools Heavy Duty Insulated Multi Tap And In Line Splicer Reducers Leftcolumn Article Thumbnailimage File

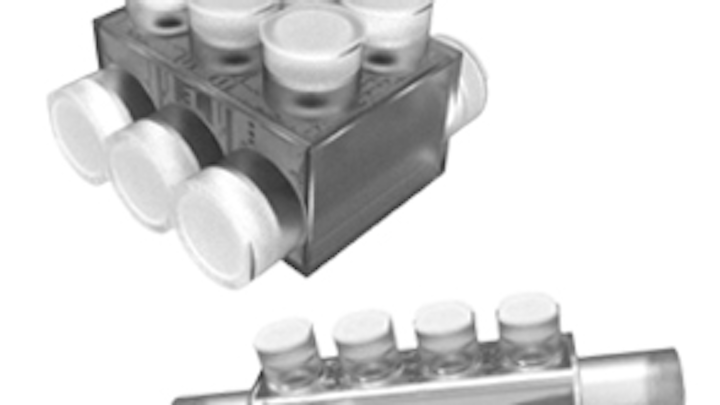

Utility supplies: BURNDY is pleased to announce the addition of a family of Heavy Duty Insulated Multi-tap and In-Line splicer/reducers to our current offering of UNITAP™ connectors. This expansion includes 8 tap configurations and in-line splicer/reducers in both clear and UV-rated black and accommodate wire sizes from #2 - 750 kcmil. Each conductor port contains 2 set screws to increase the strength and performance of the connector, and will provide a reliable and robust connection in the most demanding applications.

Features and Benefits
• 600 Volt Rated
• Fully insulated aluminum 6061-T6 connector body saves time and lowers installation costs by eliminating taping
• Listed to UL 486A-B, File E9498
• Dual Rated for use with copper and aluminum conductors
• Range taking designs accommodate wire sizes from #2 - 750 kcmil
• Configurations include Double-Side Entry Taps in 2 to 12 ports and In-Line Splicer/Reducers
• Available in UV-Rated Black or Clear Plastisol Insulation
• Operating temperature range from -40ºC to 135ºC
• Conductor ports are pre-filled with oxide inhibitor
• Screw Port and Conductor Port caps provided to protect against contamination and accidental contact of energized parts

For more information about BURNDY or other products, click here to go to Utility Products’ website. Or visit our Industry News and Equipment Showcase e-newsletters.
