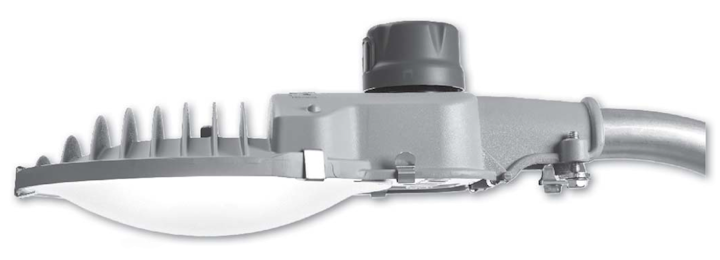

Safety lighting: AreaMax LED Area Light

Work light: Evluma’s AreaMax is the utility standard for area and security lighting. At 94 lm/W for the entire system, the 40W AreaMax is a recommended LED replacement for the average 100-175W HID fixture, while the 70W model is recommended to replace 200W HID fixtures

Content Dam Up En Articles 2015 03 Safety Lighting Areamax Led Area Light Leftcolumn Article Thumbnailimage File

Utility safety: Evluma’s AreaMax is the utility standard for area and security lighting. At 94 lm/W for the entire system, the 40W AreaMax is a recommended LED replacement for the average 100-175W HID fixture, while the 70W model is recommended to replace 200W HID fixtures. Order the AreaMax with ConnectLED and take advantage of additional maintenance and energy savings with dimming features and remote commissioning/ decommissioning.

Photocontrol Failsafe Mode

The AreaMax introduces a revolutionary new way to deliver dusk-till-dawn efficiency with a built-in photocontrol fail-safe processor. Over time, the input from the photocontrol calibrates the AreaMax processor to its unique conditions for dusk to dawn cycles. Should the photocontrol fail, the AreaMax will continue to cycle based on the information it has collected eliminating a maintenance visit and guaranteeing continuous operation. Read more about the Photocontrol FailSafe Mode in our Technical Bulletin.

Photocontrol Option

Order with an Evluma integrated photocontrol for a single-solution, easy installation. Evluma encourages the reuse of existing photocontrols when you order the S3 option that accepts standard 3 pin photocontrols.

Coastal Package

The coastal package option includes an access panel and tenon clamp made from aluminum, plus stainless steel bolts to guarantee longevity in harsh, salt fog environments.

ConnectLED™ ConnectLED is a software application that communicates with the AreaMax via BLE (Bluetooth Low Energy) to:

· commission/decommission the fixture

· create brightness settings

· upload custom dimming algorithms

· FaultCast™ easy troubleshooting

Run ConnectLED on a Windows 7 laptop with a licensed dongle at a range of 150' from the AreaMax.

Warranty: 10 year Warranty.
