Work light: 50-ft. MegaTower pneumatic light mast

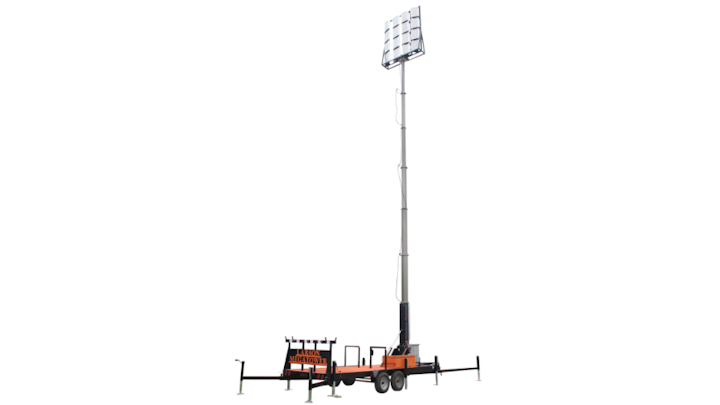

Safety lighting: Larson Electronics’ 50-ft. Mega Tower on a 21-ft. trailer equipped with sixteen 500 watt LED light heads is in production for immediate shipping.

Content Dam Up En Articles 2016 01 Work Light 50 Ft Megatower Pneumatic Light Mast0 Leftcolumn Article Thumbnailimage File

Work light: Industrial lighting specialist Larson Electronics’ 50-ft. Mega Tower™ on a 21-ft. trailer equipped with sixteen 500 watt LED light heads is in vast production for immediate shipping. The LM-50-5S-TLR-16X400LTL-LED Mega Tower™ pneumatic light mastprovides a safe and effective way for operators to quickly deploy sixteen 500 watt LED light heads to elevations up to 50’. This tower folds over for easy transportation, features a hydraulic ram upright assist, an air powered pneumatic mast and high output LED light fixtures.

The entire assembly is mounted on a 21’ by 8’ tandem axle trailer that allows operators to transport the boom from one location to another. The mast is elevated from its horizontal resting position by using an included hydraulic ram and is extended to its full height of 58’ with a trailer mounted air compressor. The elevation is controlled by a push button switch to operate the hydraulic ram, allowing operators to raise the mast to the upright position. The vertical deployment is operated by an up/down level, allowing operators to extend it to its full 50’ height or retract it to the 22’ collapsed height.

The 16 light heads on this tower are Larson’s wet area suitable GAU-LTL-600W-LED high output LED fixtures that produce 60,000 lumens of light at 500 watts each. Each light head contains 48 CREE® high output LEDs producing 1,250 lumens each. Each light is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are hard wired into a NEMA 3R panel located on the end of the telescoping boom. Power is provided to the control box via a 20’ 10/4 SOOW whip with flying leads for connection to terminal mount gensets. The entire unit is mounted onto a four wheel, tandem axle trailer constructed of 8” box steel equipped with axles. Each axle is rated at 7,000 pounds and equipped with tubeless tires and wheels. A single 7,000 pound rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. The trailer is finished in Dupont™ paint for protection against rust and corrosion and provides an attractive finish.

“Our new 50’ pneumatic light mast is by far the brightest and biggest light mast we have ever manufactured,” said Rob Bresnahan with “It is designed to provide operators with a heavy duty, stable, reliable unit that produces extreme light output no other tower can compare to.”

Larson Electronics specializes in portable industrial lighting equipment, high mast light towers, explosion proof light fixtures, power distribution systems, LED lighting and more.

For more information about Larson Electronicsor other products, click here to go to Utility Products’ Buyers Guide.
