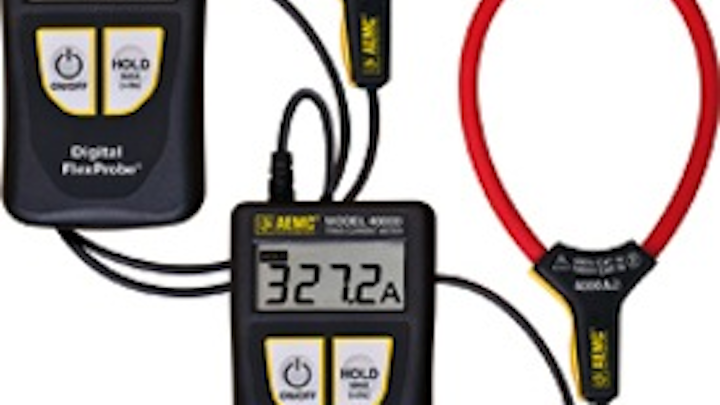

Digital FlexProbe Models 400D and 4000D

An ideal addition to the electrician’s tool kit, AEMC’s Digital FlexProbe models can be used for TRMS AC current measurements and are rated at 600V CAT IV.

Jun 11th, 2013
Content Dam Up Online Articles 2013 06 Aemc

An ideal addition to the electrician’s tool kit, AEMC’s Digital FlexProbe models can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a solution when accessing electrical conductors is difficult in tight places.
Three models are available: The Model 400D, available with either a 6-in. or 10-in. sensor, has a measurement range starting at 20 mA, and is designed for work in residential, commercial and light industrial applications. It can be used to check electrical distribution systems up to 400 Amps. The Model 4000D, available with a 14-in. sensor, has a measurement range starting at 100 mA and can be used on higher-power industrial installations, as well as electrical utilities for measurements up to 4000 Amps.
Although they are high-performance instruments, the Digital FlexProbe models remain simple to use: two buttons are all it takes to start the instrument, deactivate the auto power-off, HOLD the value on the display or store the maximum value (MAX HOLD). The values are read directly on the built-in 4000-count display.
They are ergonomically designed for comfortable handheld use—even when bulky gloves are required. The optional articulating, magnetic Multifix mounting system accessory makes it simple to hang on a wall, door, table edge or clip onto a belt.
For more information about AEMC or other current measurement products, click here to go to Utility Products’ Buyers Guide.
