Tray cable connectors accept wide range of cable sizes

Appleton’s connectors add value by accepting wider range of cable sizes, certified for use in IEC and NEC applications.

Appleton
Appleton

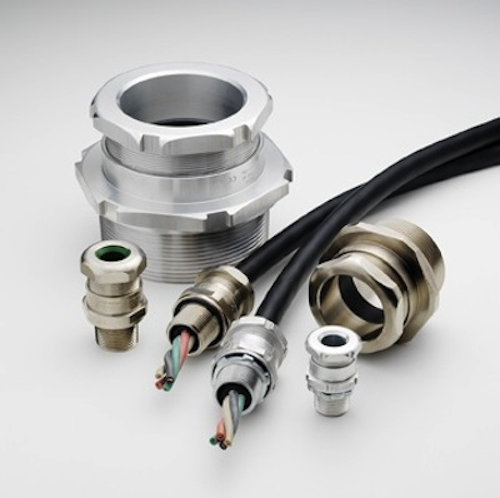

Rosemont, Ill.—Appleton, a manufacturer of products for hazardous location electrical systems, has introduced a versatile line of tray cable connectors engineered for use with TC, ITC, PLTC and other commonly-used types of tray cable.

Key to the success of the new connectors is a compensating displacement seal that provides ingress protection to NEMA 4X and IP68 standards, allowing use in highly caustic or harsh. The connectors also feature a seal insert that lets each gland terminate the broadest cable range available in a single hub size.

Manufacturered in aluminum, stainless steel and nickel-plated brass, the new connectors offer a wide continuous operating temperature range of -76F to 230F and come in trade sizes ranging from 1/2 inch to 4 inches. NPT threads are standard, while metric is available as an option. Other options include an adaptor/reducer and earth tags.

Ratings and classifications:

• cCSAus, IECEx, ATEX certified;
• Class I, Div 2, Groups A, B, C and D;
• Class I, Zone 1 AEx e and Ex e, where permitted by code;
• Class II, Div 2, Groups E, F and G;
• Class III, Div 1 and 2;
• NEMA: 4X; and
• IP66/67/68.
