T925 wireless cellular controller

Xenon announces T925 wireless cellular controller for electrical substations; it connects remote equipment through cellular networks, eliminating the need for hardwired connections.

wireless cellular controller
wireless cellular controller

Irvine, Calif.—Xenon announces the T925 Wireless Cellular Controller for connecting remote sites with central control and monitoring stations through cellular networks. A T925 remote communications network eliminates the need to make hardwired Ethernet connections to the Internet or to an intranet at each remote site and at the central control and monitoring station, and the network operates from any location worldwide with cellular coverage.

A T925 remote communications network allows end users, machine and skid builder OEMs, RTU and SCADA OEMs, security monitoring system OEMs and other firms to monitor and control their automation and monitoring systems through the cellular network at sites thousands of miles away. Typical applications include electrical substations, pipelines and pump stations.

A T925 remote communication network is usually configured with a T925 at each site. Up to 250 T925s can simultaneously communicate through the cellular network with a VPN router installed at a central control and monitoring station. Each T925 is custom-configured by Xenon, and is ready for deployment and operation with no communications programming required by the user.

Once one or more T925s and the VPN are installed and communicating, a user simply needs to connect desired hardware components to the VPN to enable full remote monitoring and control of all components connected to the T925 at the remote site. Hardware components at the central control and monitoring station are hardwired to the VPN and are typically one or more PCs running SCADA software.

The T925 can be connected to a variety of components at the remote site. It can accept up to seven Ethernet inputs—as well as four digital inputs, four analog inputs and two temperature inputs, either thermocouples or RTDs. The T925 has four digital relay outputs that can be used to control components and systems at the remote site, and it features on-board data logging with up to 2 gigabytes of storage space.

The T925 also allows users to connect to local devices serially through RS232, RS422, and 2- and 4-wire RS485/422 communication links. OPC communications are supported with all digital data links.

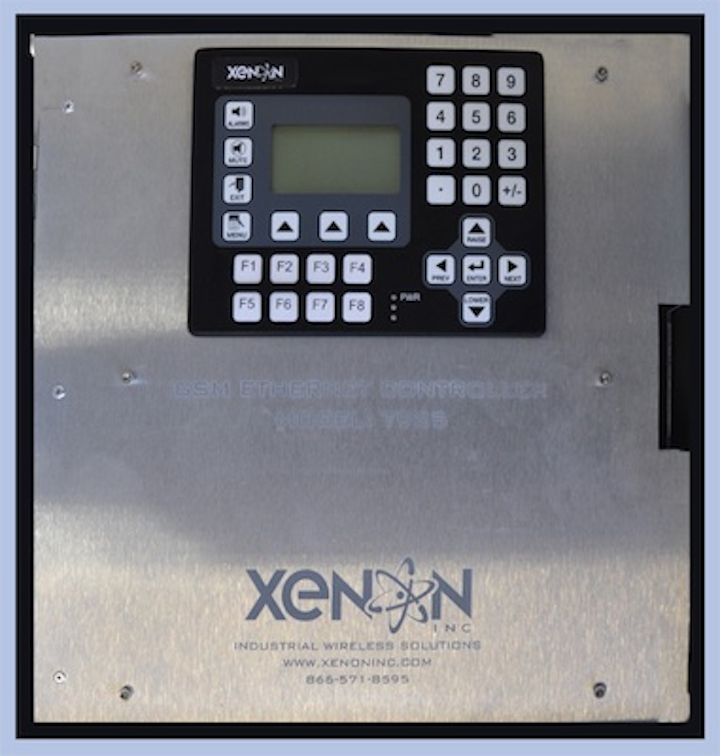

The T925’s local HMI operator interface panel with push button inputs gives personnel at the remote site the ability to monitor operation, set alarm ranges and set points, and control local devices. The T925 is housed in a NEMA 4X enclosure suitable for installation in Class 1, Division 2 hazardous area locations, and it meets FCC, C/UL, CSA and CE requirements.

The recent widespread proliferation of high-speed 3G and 4G cellular networks has increased communication bandwidth and performance to a level more than sufficient for most industrial automation control and monitoring applications. This makes cellular network communications the best option in many applications because of its superior price-performance ratio along with its ease of installation and use.

The T925 works with AT&T, T-Mobile, Verizon, Sprint, Midwest Wireless, Cellular One and 16 international carriers. Depending on customer preference, contracts with cellular providers can either be direct billed to the customer, or billed through Xenon via a software-as-a-service model. Cellular network communications are typically through an always-on cellular gateway, with charges based on data usage.

With a T925 system, communications are transparent between components at the remote sites, and control and monitoring hardware and software at the central station.
