Work light: Telescoping light mast has high intensity LED light fixtures

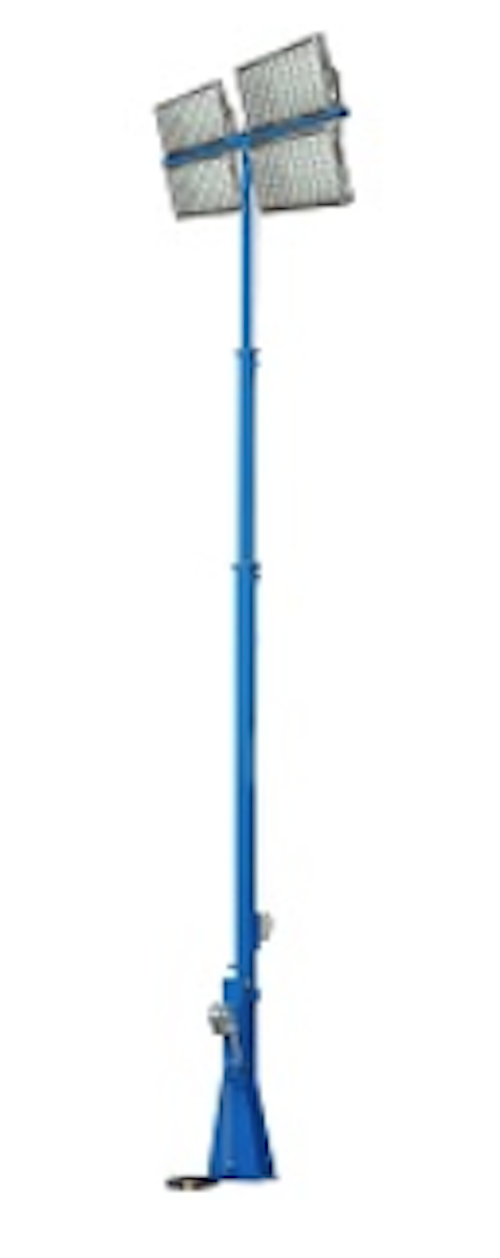

Utility equipment: Larson Electronics’ 30-ft. telescoping light mast is equipped with four 400-watt high intensity LED light fixtures.

Content Dam Up En Articles 2014 11 Work Light Telescoping Light Mast Has High Intensity Led Light Fixtures Leftcolumn Article Thumbnailimage File

Utility supplies: Larson Electronics has announced the release of a 30-ft. telescoping light mast equipped with 1,600 watts of high intensity LED light. The LM-30-3S-4X400W-LED is a three-stage fold over light mast that provides a safe and effective way for operators to quickly deploy 1600 watts of intense LED lighting to elevations of 30 feet.

The LM-30-3S-4X400W-LED features a rotating boom that allows for 360° of rotation, a removable mast head for storing mounted equipment when not in use, and an easy fold over assembly for transportation and storing purposes. This light boom can be extended to a height of thirty feet for effective coverage and collapsed to 12 feet. The mast is elevated from its folding position with a 2,500-pound hand winch that is fitted with 3/16 inch cable. A second 2,500-pound winch provides the 12 to 30 feet elevation of the mast. The 360° rotation is provided by a single T-Handle. By loosening the T-Handle, operators can rotate the mast with ease in either direction. It can be locked into place once the desired position is found by tightening the T-Handle.

The lighting system on this light mast is comprised of four 400-watt LED lamps producing 52,000 lumens of light, each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern with a combined total of 1,600 watts and 508,000 lumens of light. These lights are ideal replacements for fragile and hot running 1000-watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The entire lighting assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures. These light masts are typically mounted to trailers or other stable surfaces by a 15-in. by 13- in., 14-in. thick mounting baseplate that has been predrilled to accept six 5/8-in. anchor bolts. A 52-in. long mounting plate. constructed of 2-in. by 2-in. by 14-in. thick carbon steel, is attached to the upper section of the mast which provides a strong and stable platform for the four LED fixtures.

“The LM-30 offers a fast and secure solution to elevate equipment up to 30 feet,” said Rob Bresnahan with “Our LM series of towers are powder coated with a glossy blue finish for corrosion resistance and aesthetics.”

Larson Electronics produces a full range of industrial and commercial lighting equipment, telescoping light towers, explosion proof lighting, and LED work lights.
