Utility equipment: Remote switch actuators for circuit breakers

Utility supplies: CBS ArcSafe introduces remote switch actuators for ABB/Sace E-Max circuit breakers.

May 15th, 2014
Content Dam Up En Articles 2014 05 Utility Equipment Remote Switch Actuators For Circuit Breakers Leftcolumn Article Thumbnailimage File

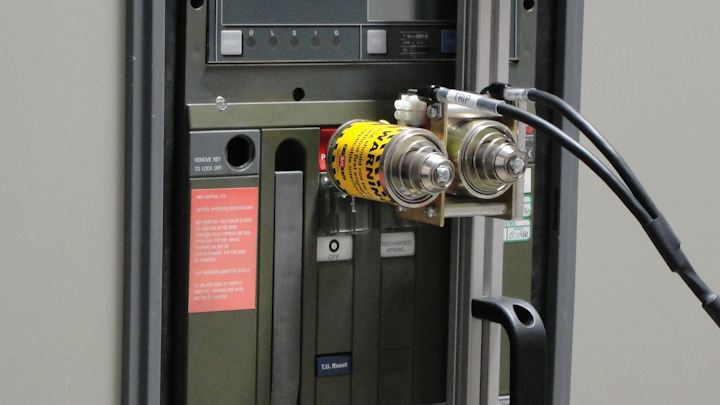

Safety products: CBS ArcSafe®, a manufacturer of remote racking and switching solutions for low- and medium-voltage switchgear, introduces its remote switch actuator for ABB/Sace E-Max Series low-voltage power circuit breakers. Designed for all sizes of ABB/Sace E series (E1 to E6) circuit breakers with current ratings from 800-6000A, the CBS ArcSafe® RSA-96A allows technicians to safely close and/or trip breakers outside of the arc-flash hazard boundary without any modification to the breaker.

When accompanied by an applicable CBS ArcSafe® Remote Switch Operator (RSO) control unit, the RSA-96A provides open and close operation from up to 300 feet away, reducing the need for arc-flash hazard suits and eliminating all hazardous manual contact with gear during operation. Utilizing strong magnets, the actuator requires no modifications for switchgear mounting, and operators can easily move the actuator from one breaker to another. The actuator is lightweight, portable, and simple to install and setup, providing technicians with a quick solution for hard-to-access breaker locations.

Optional features for the RSA-96A include a radio remote with a range of up to 300 feet, a wired or wireless video camera system with LCD monitor for remote viewing, and a custom-fit rugged storage case. When combined, these features make the RSA-96A easy to install and remove, allowing technicians to quickly and safely set up and operate different sets of the same electrical equipment. All CBS ArcSafe® products are manufactured in the U.S. at our manufacturing facility in Denton, Texas.

For more information about CBS ArcSafe or other products, click here to go to Utility Products’ Buyers Guide.
