Work lights: 25-ft. three stage telescoping light mast
Safety lighting: Larson Electronics releases a 25 ft. three stage telescoping light mast with four 150 Watt LED light fixtures.

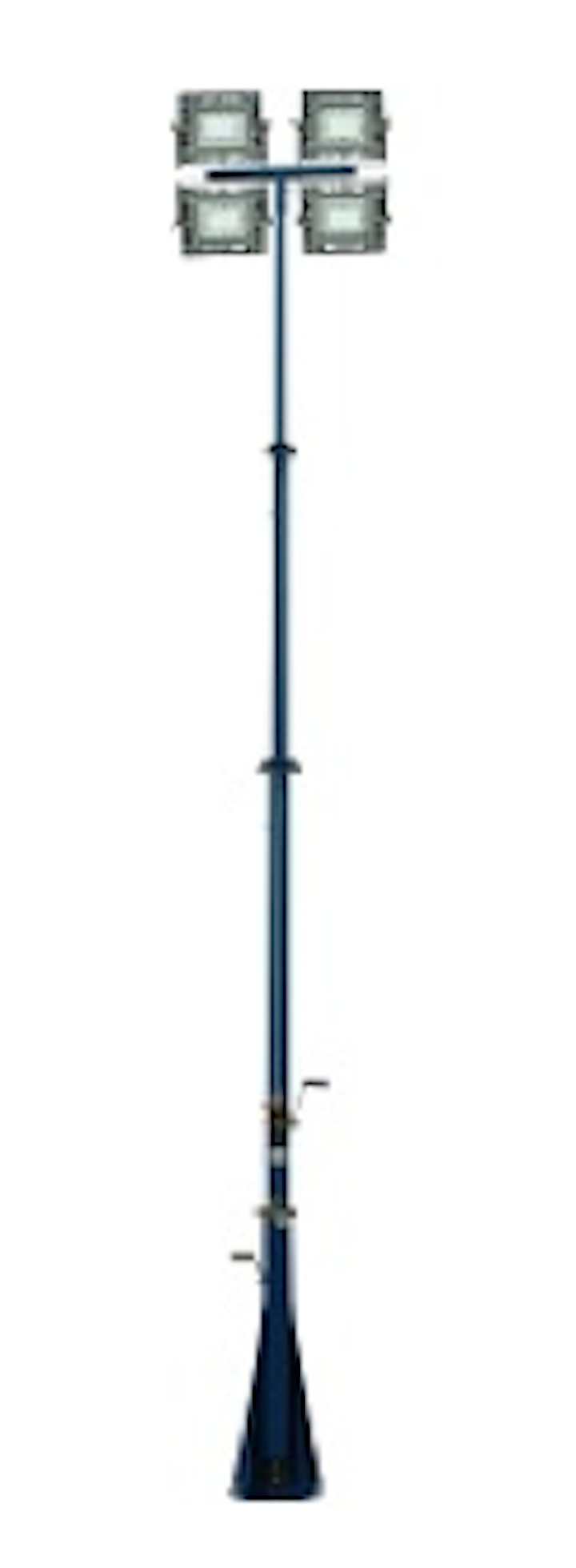

Utility equipment: Industrial lighting specialist Larson Electronics has announced the release of a 25 foot telescoping light mast with 360° rotating capabilities that is equipped with four 150 watt LED light fixtures. The LM-25-3S-4X150RT-RB is a fold over light mast that produces 48,000 lumens of light capable of illuminating 2.5 acres of work space.
The LM-25-3S-4X150RT-RB produced by Larson Electronics features a rotating boom that allows for 360° of rotation, a removable mast head affixed with four 150 watt LED light fixtures, and an easy fold over assembly. This three stage light boom can be extended to a height of 25 ft. for effective coverage and collapsed to 12 ft. The mast is elevated from its folding position with a 1,000 pound hand winch that is fitted with 3/16 in. cable. A second 1,000 pound winch provides the 12 ft. to 25 ft. elevation of the mast. The 360° rotation is provided by a single T-Handle. By loosening the T-Handle, operators can rotate the mast with ease in either direction and lock it into place once the desired position is found.
This light mast includes four of our wet area suitable LED fixtures that produce a combined total of approximately 48,000 lumens at only 600 watts. Each fixture produces 12,000 lumens of high intensity light while drawing only 150 watts at 1.25 amps from a 120 volt electrical system. The lights are wired to a junction box at the base of the tower, and 10 ft. of SOOW cable terminated in an industrial grade 5-15 plug. A 36 in. wide and 1/4 in. thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four light fixtures. These light masts are typically mounted to trailers or other stable surfaces by a 15 in. by 13 in., 1/4 in. thick mounting baseplate which has been predrilled to accept six 3/4 in. anchor bolts. When lowered to 12 ft., the mast can withstand winds up to 125 miles per hour. The light tower weighs approximately 300 pounds and can easily support and lift 150 pounds of weight.
“The LM-25-3S-4X150RT-RB is capable of illuminating 2.5 acres of land making it sufficient for construction site lighting, event lighting, industrial plants, and mining and excavation applications,” said Rob Bresnahan with Larsonelectronics.com. “This heavy duty unit is designed for use in demanding conditions and for overall longevity in difficult construction environments.”
Larson Electronics produces a full range of industrial and commercial lighting equipment, telescoping light towers, explosion proof lighting, and LED work lights.
