Transformer Design Optimizes Overload Capacity and Reliability in a Smaller Footprint
PEAK transformers from Cooper Power Systems manage increased loads and temporary overload capacity with a four times greater life expectancy when compared to mineral oil-filled transformer alternatives.

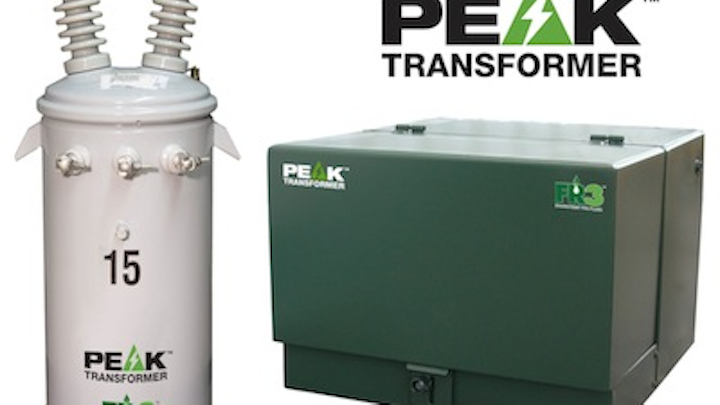

PEAK transformers from Cooper Power Systems are designed to manage increased loads and temporary overload capacity with a four times greater life expectancy when compared to mineral oil-filled transformer alternatives. Utilities are able to operate PEAK transformers beyond full rated load to at least 112 percent to more precisely size transformers based on unpredictable periods of peak demand.
Using an advanced high-temperature insulation system comprised of thermally upgraded kraft paper, an optimized core and coil design, and Envirotemp FR3 dielectric fluid, a 75-degree Average Winding Rise (AWR) PEAK transformer results in a smaller footprint and lighter unit capable of the same ratings as a physically larger 65 AWR rated unit. PEAK transformers are filled with the biodegradable alternative to transformer oil, Envirotemp FR3 dielectric fluid, a critical enabling technology that extends transformer life and raises fire ignition resistance. In addition, this soybean oil-based fluid creates a barrier against water at the surface of the insulation, making the thermal kraft paper in the coil windings stronger and longer lasting. All of these attributes combine for a lower total cost of ownership vs. comparable fluid-filled transformers.
