Safety products: Push-in cable gland speeds installation times

Utility supplies: ABB introduces push-in cable gland to speed installation times. The NPG Quick-Connect saves time and offers high ingress protection.

Oct 23rd, 2017
Content Dam Up En Articles 2017 10 Safety Products Push In Cable Gland Speeds Installation Times Leftcolumn Article Thumbnailimage File

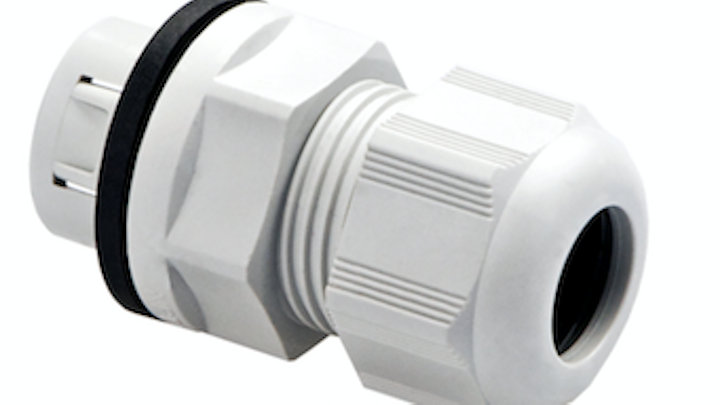

Safety products: ABB’s latest cable gland offering, the NPG Quick-Connect™, allows for the fast and effective installation of cable into a box or panel without access to the inside of the enclosure, greatly speeding the process.

Thanks to its built-in nylon locking mechanism, the Quick-Connect offers an easy three-step process: Simply plug the gland into a properly sized box hole until it clicks, insert the cable and tighten. No nuts or separate parts are required.

The speed and ease of installation makes the NPG Quick-Connect an ideal candidate for panel builders and volume installers, as the ease of installation comes with no reduction in performance.

The glands conform to UL514B / CSA C22.2 No. 18.3; EN 62444.

Quick-Connect is a single-piece, corrosion-resistant nylon cable gland suitable for non-armored, portable and tray cable types. When installed, Quick-Connect can achieve ingress protection of IP66 or IP68. Under normal use, NPG Quick-Connect glands are rated to perform from -20 degrees C to 100 degrees C ( -4 degrees F to 212 degrees F), but in shorter periods can withstand -30 degrees C to 150 degrees C ( -22 degrees F to 302 degrees F).

The product is available through ABB distributors in the United States.

“The ease of installation alone makes Quick-Connect an ideal product for OEMs and panel builders, and for anyone in the field who works with electrical enclosures. Combined with its high performance characteristics, and I think most installers will agree that it offers a valuable set of advantages,” said Ricardo Portillo, ABB global product manager for flexible metallic conduit systems and cable glands.

ABB (ABBN: SIX Swiss Ex) is a pioneering technology leader in electrification products, robotics and motion, industrial automation and power grids, serving customers in utilities, industry and transport & infrastructure globally. Continuing more than a 125-year history of innovation, ABB today is writing the future of industrial digitalization and driving the Energy and Fourth Industrial Revolutions.
