Safety equipment: Locate buried electronic markers

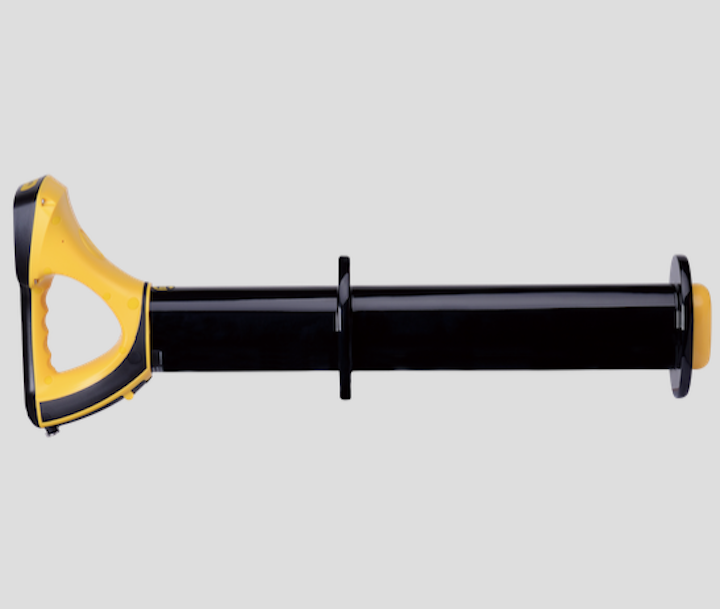

Safety products: Vivax-Metrotech’s vLocML2+ Receiver is an extended version of the vLocPro2 with the addition of the ability to locate buried electronic markers.

Content Dam Up En Articles 2018 02 Safety Equipment Locate Buried Electronic Markers Leftcolumn Article Thumbnailimage File

Safety equipment: Vivax-Metrotech’s vLocML2+ Receiver is an extended version of the vLocPro2 with the addition of the ability to locate buried electronic markers. The vLocML2+ comes with passive modes of Power and Radio, a range of preloaded active frequencies from 50Hz to 200kHz, Sonde Mode, SD (Signal Direction) mode and Electronic Marker modes. The vLocML2+ has an internal memory to store over 1000 records of data.

The vLocML2+ can be used in three configurations suited to the task at hand. The Line/Marker mode for all the functions for general pipe, cable and sonde locating and where all markers attached to lines are shown with depth. The Dedicated Line Location mode where all the functions for general pipe, cable and sonde locating are active and the dedicated Marker Mode for just marker locating.

The vLocML2+ Receivers accessory socket can enhance the locating experience with accessories such as the A-frame Fault Locator to pinpoint faults and cable cuts and the Remote Antenna to act as a stethoscope to positively identify a cable when in a tray.

Features
• Large full-color screen
• Left/Right locate arrows
• Bluetooth and GPS options
• Compass line direction indicator
• Rechargeable and alkaline batteries
• Auto depth readout of buried markers

A wide range of transmitters are available for use with the vLocML2 receiver.

For more information about Vivax-Metrotech or other products, click here to go to Utility Products’ website.
