Test equipment: Primary Injection Testing

Megger’s INGVAR is a powerful test system designed by for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents.

Feb 9th, 2015
Content Dam Up En Articles 2015 02 Test Equipment Primary Injection Testing Leftcolumn Article Thumbnailimage File

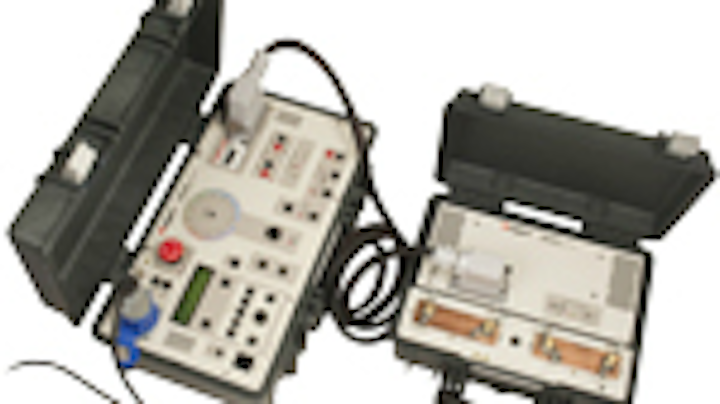

Test products: Megger’s INGVAR is a powerful test system designed by for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents. The two parts are portable, and the INGVAR can be quickly assembled and connected.

Features of the product include:
• Most advanced primary current injection test system to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more;
• Up to 5000 A output current;
• Two units, each of about 44 lbs., simplifies transportation; and
• Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result

About INGVAR
A main component to the INGVAR’s capabilities is the advanced control unit. It has a powerful measurement section that displays turns ratio, time, voltage and current. A second measurement channel can be used to test an additional current or voltage. Current transformer turns ratio, impedance, power, power factor and phase angle are calculated and shown in the display. Current and voltage can be presented as percentages of nominal value. The fast-acting hold function freezes short-duration readings on the digital display when the voltage or contact signal arrives at the stop input, the object under test interrupts the current or injection is stopped.

For more information about Megger or other products, click here to go to Utility Products’ Buyers Guide.
