Power measurement: HVA-2000 High Voltage Digital Ammeter from HD Electric

Electrical measurement: Take ampere measurements on conductors up to 500 kV quickly and easily with the HVA High Voltage Digital Ammeter from HD Electric Company.

Content Dam Up En Articles 2013 11 Power Measurement Hva 2000 High Voltage Digital Ammeter From Hd Electric Leftcolumn Article Thumbnailimage File

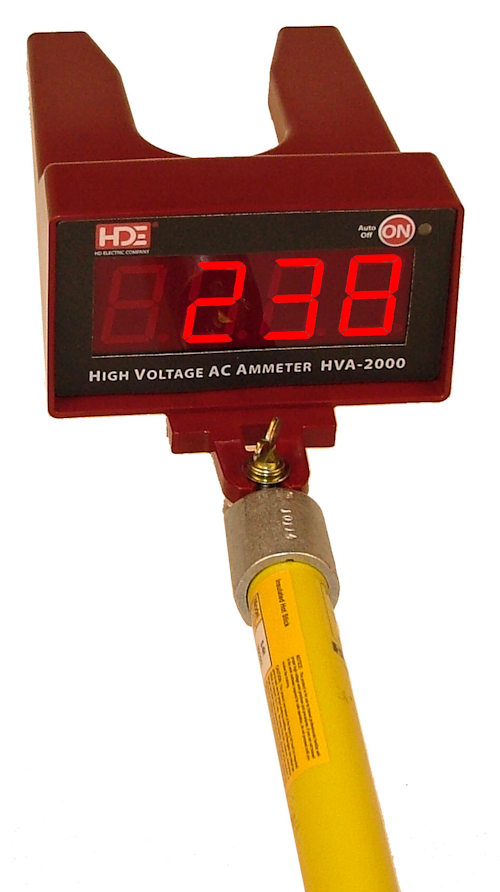

Energy meter: Take ampere measurements on conductors up to 500 kV quickly and easily with the HVA High Voltage Digital Ammeter from HD Electric Company. The large, bright, 4-digit LED display allows you to read amps from the longest of telescoping hotsticks. The HVA is lightweight and easy to use on the end of a long hotstick. The HVA-2000 features 1% accuracy and will store the last 4 readings, allowing you to read real-time amps directly during live line operations or by using the stored readings function.

Features and Benefits
• Quickly take current readings on conductors up to 500kV (phase-to-phase)
• Measures AC current, 25-500 Hz
• Read the measurement in real time from the large digit display
• Stores the last four current readings
• Display is easy to read in bright or dark conditions
• Auto shutoff with low battery function
• Small and lightweight, easy to manage on an extension hotstick
• Dual hotstick connections - universal spline and clampstick
• Use on conductors up to 2.75" (7.0 cm)
• Accuracy 1% of reading
• Made in the USA
