Utility supplies: Cable reels feature re-engineered fluid path
Cable reels: COXREELS re-engineers full-flow fluid path for the 1195 Series reels.

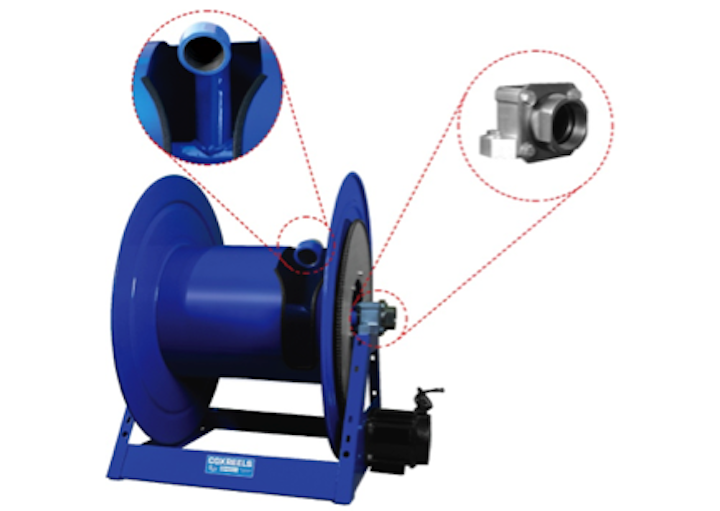

Utility equipment: In response to industry demand, Coxreels®, a manufacturer of industrial-grade hose, cord and cable reels, announces the entirely re-engineered fluid path on the 1195 Series reels. The 1195 Series now comes standard equipped with an in-line swivel and a remodeled low profile outlet riser offering superior full-flow characteristics and an improved operating pressure range.
The 1195 Series, featuring a sturdy one-piece, all welded “A” frame base for maximum stability and designed to handle 50 to 125 feet of 2” hose I.D for increased volume delivery applications, now has an in-line electroless nickel plated steel NPT swivel. The swivel is anchored to a new machined from solid billet aluminum bearing assembly, ensuring swivel to axle concentricity, proper swivel alignment and improving seal life and integrity. The newly revamped 1195 Series also features a one-piece swept outlet riser eliminating machined flanges and o-ring flange seal; combined with the in-line swivel, the hose reel now offers maximum full-flow fluid path and increased operating PSI rating up to 1000 PSI.
Coxreels® also offers stainless steel fluid paths for demanding applications in corrosive and hygienic environments. The new style outlet riser has also been redesigned to accommodate various industry thread requirements such as NPT, BSP, and NST. The 1195 Series with the alternative “90 degree” electroless nickel plated steel NPT swivel is still offered and can be ordered by adding the suffix “-BUXX” to the end of the model number.
Coxreels® has remained steadfast and focused on manufacturing high quality industrial grade hose, cord, and cable reels with industry innovation since 1923. Offering a full product line serving the industry in every channel and application, Coxreels® takes great pride in designing, building, and supporting all of their products right here in the U.S.A.
