Voltage meter: DVM-80 Series Digital Voltmeters from HD Electric

Energy meter: HDE's DVM-80 Series Digital Voltmeters and Phasing Sets are compact, high accuracy instruments designed to measure voltages up to 80kV.

Oct 18th, 2013
Content Dam Up En Articles 2013 10 Voltage Meter Dvm 80 Series Digital Voltmeters From Hd Electric Leftcolumn Article Thumbnailimage File

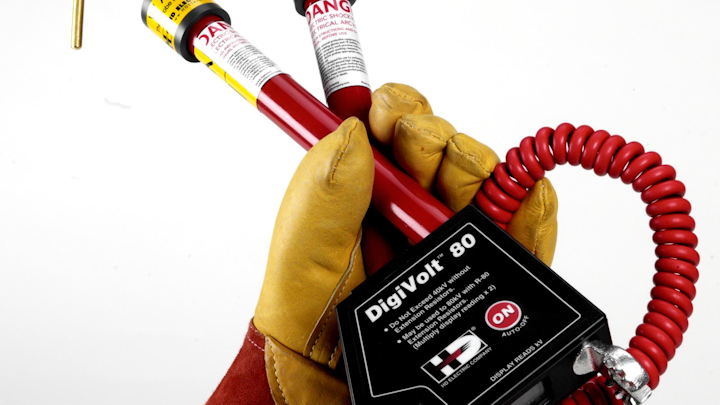

Voltage measurement: HDE's DVM-80 Series Digital Voltmeters and Phasing Sets are compact, high accuracy instruments designed to measure voltages up to 80kV. The DVM-80 series incorporates Phase Accurate Technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%.

There are 3 models - the DVM-80, DVM-80T with test point mode and the latest exciting addition to the series, the DVM-80UVM. The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. It measures voltage from 5V to 40kV and up to 80kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications.

Features and Benefits
• Peak Hold mode
• Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV
• Highly accurate, within 1% of the reading
• Backlit display for easy reading in bright or dark conditions
• Measures AC and DC voltages
• Use on secondary voltages, starting at 5 Volts
• Measure voltage on elbow test points, meter will display the system voltage
• Test underground cables for faults
• Auto shut-off
• Powered by a 9V alkaline battery in an easy to change battery case - no tools required • Voltmeter weights 2.25 lbs.
• Made in the USA

The DVM-80UVM is available in a Universal Voltmeter Kit. We have packaged the DVM-80UVM with an assembly of accessories, offering it as a complete ready-to-use Universal Voltmeter Kit.
