Test Equipment: CableData Collector Finds Defects In Live Cables

Electrical safety testing: EA Technology has launched the most effective instrument yet for identifying defects in live cables of distribution voltages.

Content Dam Up En Articles 2013 07 Test Equipment Cabledata Collector Finds Defects In Live Cables0 Leftcolumn Article Thumbnailimage File

Cable test equipment: The CableData Collector works by testing for Partial Discharge (PD) activity--small discharges that result in damage to the cable, and if left unattended will lead to insulation failure.

EA Technology Commercial Director Neil Davies said: “Measuring PD activity is a very accurate way of assessing the condition of cables and their likelihood of failure and outage. The ability to test cables without the need to de-energize them is a real benefit. Essentially, they can be fixed before they fail and cause expensive outages.”

The instrument quickly detects PD activity in live cables by measuring radio frequency currents. It works with most types of single and three phase insulated cables at distribution voltages, up to several miles/kilometres in length.

Information about PD activity is recorded by the CableData Collector hardware and can be sent to EA Technology for expert analysis. Alternatively, users can buy EA Technology¹s software package to perform their own data analysis. In either case, they will have access to clear reports on cables affected by PD activity and recommendations for remedial action.

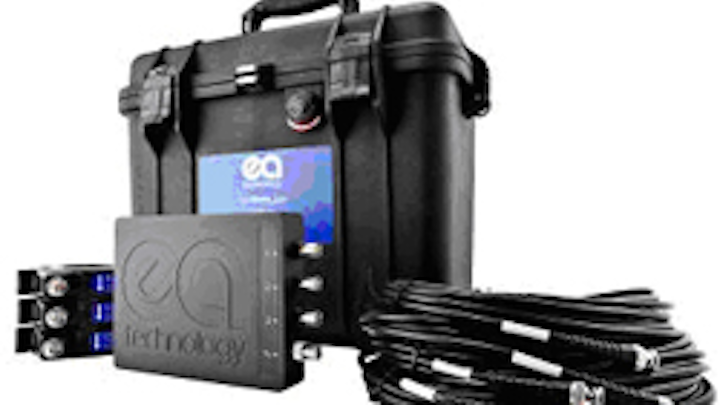

CableData Collector instruments are supplied as complete, ready-to-use kits, with Radio Frequency Current Transformers (RFCTs), cabling, USB-powered data collection unit and carry case, together with optional software, training and factory technical support. Kits are also available for rental, or EA Technology engineers can provide cable testing as a site service, anywhere in the world
