Converter modules offer wide input voltage range

Power Sources Unlimited announces the Traco Power TEN 40N series of dc/dc converters.

Power
Power

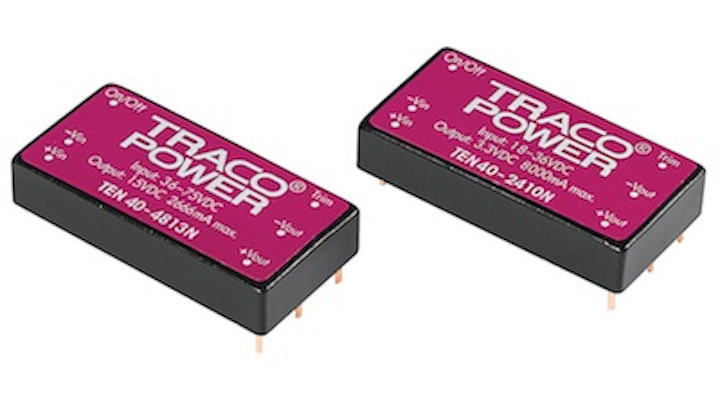

Wrentham, MA—The TEN 40N series is a family of high performance 40 Watt dc/dc converter modules featuring ultra wide 4:1 and 2:1 input voltage ranges in a 1" x 2" x 0.4" package with industry standard footprint. The series features input voltages up to 75 Vdc, very good EMC characteristics and EN 50155 approval.

Further standard features include remote on/off, over voltage protection, under voltage lockout and short circuit protection. Low input current characteristics at minimal load make these converters a very good solution for battery-operated systems. Typical applications are in wireless networks, telecom/datacom, industry control systems and measurement equipment.

Operating temperature range is -40C to +71C. Additional standard option includes heat sink TEN-HS4.
