Converter module introduced

Power Sources Unlimited offers 15 watt, dc/dc converter module in ultra wide 4:1 input range.

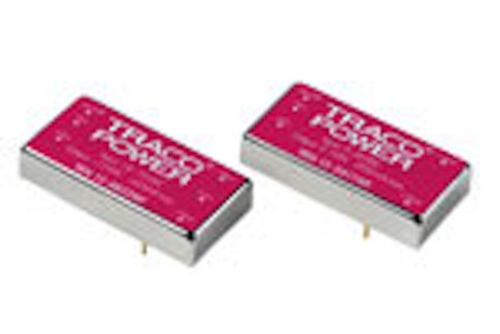

Wrentham, Mass.—Power Sources Unlimited Inc. announces the Traco Power TEN 15WI Series of DC-DC Converters. The TEN 15WI series is a family of high-performance, 15 watt dc/dc converter modules featuring ultra wide 4:1 input voltage ranges in a 1" x 2" x 0.4" package with industry standard footprint.

Input voltages up to 75 Vdc, excellent EMC characteristics and EN 55022, Class A and FCC, Level A approval make this product the best choice for many demanding applications.

Standard features include remote on/off, over voltage protection and under voltage lockout. Units are designed to include short circuit protection in a six-sided shielded case with I/O Isolation of 1500VDC. Low input current characteristics at minimal load are cited to make these converters the ideal solution for battery operated systems. Typical applications are in wireless networks, telecom/datacom, industry control systems and measurement equipment.

Extended temperature range is -40C to +85C. Additional standard option includes heat sink TEN-HS4.
