DVM-80 Series Digital Voltmeters

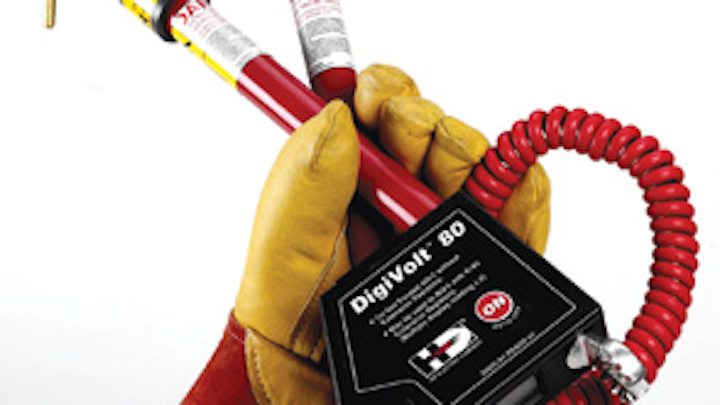

HD Electric Company's (HDE's) DVM-80 Series Digital Voltmeters and Phasing Sets are compact, high accuracy instruments designed to measure voltages up to 80 kV. The DVM-80 series incorporates phase accurate technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1 percent.

Content Dam Up En Articles 2014 01 Dvm 80 Series Digital Voltmeters0 Leftcolumn Article Thumbnailimage File

HD Electric Company's (HDE's) DVM-80 Series Digital Voltmeters and Phasing Sets are compact, high accuracy instruments designed to measure voltages up to 80 kV. The DVM-80 series incorporates phase accurate technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1 percent.

There are three models-the DVM-80, DVM-80T with test point mode and the latest addition to the series, the DVM-80UVM. The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. It measures voltage from 5V to 40 kV and up to 80 kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications.

Features and benefits: Peak Hold mode; triple auto ranging 3.5 digit display reads in kilovolts from 5V to 80 kV; highly accurate, within 1 percent of the reading; backlit display for easy reading in bright or dark conditions; measures ac and dc voltages; use on secondary voltages, starting at 5V; measure voltage on elbow test points, meter will display the system voltage; test underground cables for faults; auto shut-off; powered by a 9V alkaline battery in an easy to change battery case-no tools required; voltmeter weights 2.25 lbs.; and made in the USA.

The DVM-80UVM is available in a Universal Voltmeter Kit. The DVM-80UVM is packaged with an assembly of accessories, offering it as a complete ready-to-use Universal Voltmeter Kit.
