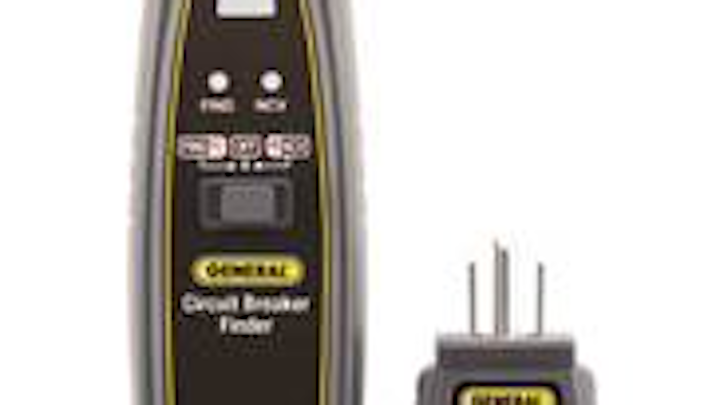

Circuit breaker finder with NCV detector and GFCI outlet checker

Utility testing: General Tools & Instruments’ circuit breaker finder easily locates breakers/fuses; detects “hot” lines, cables and outlets; checks for wiring faults.

Nov 7th, 2014
Content Dam Up En Articles 2014 11 Circuit Breaker Finder With Ncv Detector And Gfci Outlet Checker Leftcolumn Article Thumbnailimage File

Electrical test equipment / electrical testing: When doing electrical work and troubleshooting, or renovation and remodeling, it is essential to locate circuit breakers, detect “hot” wires and identify outlet wiring faults. The new Circuit Breaker Finder with NCV Detector and GFCI Outlet Checker (BF20) from General Tools & Instruments (General®) makes all of these tasks safe, easy and fast.

Comprising a transmitter and receiver, General’s BF20 allows users to accurately perform the following tasks in a fraction of the time of other methods:
• Determine the circuit breaker or fuse associated with any 110V outlet without interrupting power
• Detect energized lines, cables & outlets
• Test for & identify five common outlet wiring faults
• Verify the operation of Ground Fault Circuit Interrupter (GFCI) circuits

The BF20’s fully automatic operation turns two-man jobs into one-man jobs. When the transmitter is plugged into any 110V outlet, it sends a signal to the circuit breaker panel. At the panel, the receiver tip can be used to “scan” all of the breakers, or fuses, to identify the associated breaker.

The tip of the receiver houses an NCV detector. A beeper sounds and an LED flashes to signal “hot” or energized outlets, lines and cables. What’s more, a patented circuit in the BF20 eliminates the false positives that weaker technologies like inductive coupling often produce. The receiver also is equipped with a built-in white LED work light to help in dark locations.

The plug-in transmitter doubles as an outlet wiring tester. By measuring leakage currents, it can identify five common wiring faults in GFCI and conventional outlets: open ground, open neutral, open hot wire, hot wire and ground reversed, and hot wire and neutral reversed. The type of fault is indicated by a unique pattern of colored LEDs. The transmitter also can verify that a GFCI outlet is correctly wired.

Designed to comply with safety standard IEC 61010-1, the BF20 has a three-year limited warranty.

About General Tools & Instruments
Headquartered in New York City since 1922, General Tools & Instruments remains the market leader in precision specialty hand tools. Recent product advancements and corporate acquisitions have expanded General’s line to include over 1,500 precision tools and hand-held instruments. This vast array of products is widely used by contractors, professionals, technicians, DIYers and hobbyists in a broad range of industries.
