Test and measurement equipment: 32-channel temperature scanner indicator

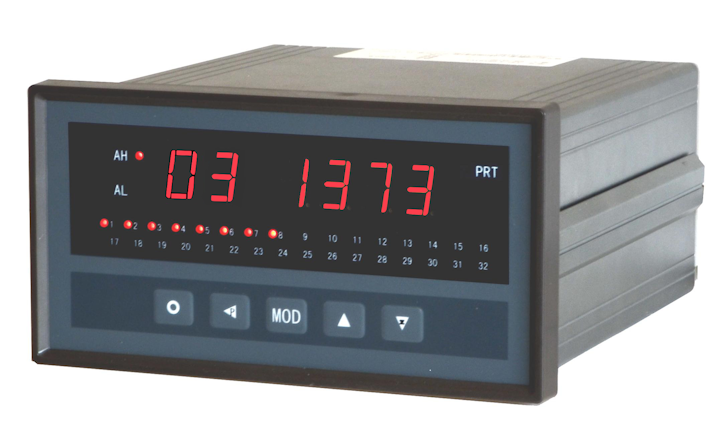

Utility tools: The Sensor Connection’s PMD-MXT Series 32-channel temperature scanner indicators are for power generation and more.

Content Dam Up En Articles 2014 11 Test And Measurement Equipment 32 Channel Temperature Scanner Indicator Leftcolumn Article Thumbnailimage File

Utility testing: The Sensor Connection, a division of Harold G. Schaevitz Industries LLC, has expanded its line of measurement and control instrumentation with the addition of the model PMD-MXT series of temperature scanner indicators for power generation and more. This 32 Channel microprocessor-based temperature scanner provides continuous monitoring of up to 32 channels of thermocouple or RTD sensors. The large 14 mm tall digit red LED display is easy to read, even at a distance. Rows of LED annunciators warn of specific channel alarm conditions. The scanner has 2 user-selectable HI/LO, HI/HI, or LO/LO alarm set points, configured through the front panel push buttons. During an alarm condition a front panel LED annunciator is enabled and an internal 2 Amp relay contact output is engaged. The scanner's display will auto cycle through all input channels at a user determined rate of 0.5 to 10 seconds per channel.

• Input: Up to (32) Thermocouple or RTD sensors
• Temperature units field selectable for °C or °F
• Auto or Manual scanning
• Adjustable Auto scan rate
• Limit Alarm trip points adjustable per channel
• Dual 2 Amp alarm relays
• Powered by 20 to 28 VDC
• Case Size only 6.3" x 3" x 7"

The Sensor Connection, a division of Harold G. Schaevitz Industries LLC, is an American company whose management has a combined experience of over 50 years in the sensor industry. We have a technically trained staff to help you select the ideal sensors for your application. Our core product offering includes Exhaust Gas Thermocouples (EGT) Probes, Thermocouples, RTDs, Linear Position sensors, Rotary Position sensors, Pressure sensors and switches. In addition to our standard products, we have capabilities to design and build custom products to suit your specific application.

For more information about The Sensor Connection or other products, click here to go to Utility Products’ Buyers Guide.
