Data Cable Transmission Tester

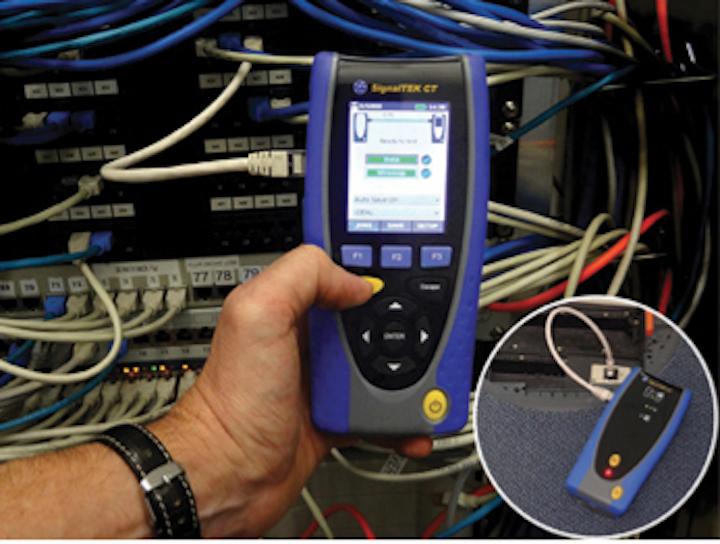

IDEAL Industries has launched the SignalTEK CT, a data cable transmission tester designed for installers and network owners who need to prove that copper cabling has been installed correctly.

Content Dam Up En Articles 2014 10 Data Cable Transmission Tester Leftcolumn Article Thumbnailimage File

IDEAL Industries Inc., a provider of quality tools, connectors and testing products for electricians and data communications contractors, has launched the SignalTEK CT, a data cable transmission tester designed for installers and network owners who need to prove that copper cabling has been installed correctly and is capable of supporting Gigabit Ethernet applications to the international standard IEEE802.3ab.

SignalTEK CT is a cost-effective alternative to LAN cable certification. It carries out two primary tests through its Autotest function: a wiremap test and a data transmission test. The wiremap test identifies and locates crossed pairs, opens, shorts and split pairs using its TDR, while the data transmission test performs at 100Mbit/s or 1000Mbit/s, providing 100 percent load on that link from both sides. This offers users a clear reading if the link really can support the desired Ethernet speed. These tests perform to the IEEE802.3ab standard by measuring if all the frames arrive at the other end of the cable, and is achieved by having two handsets that also allow for one person testing.
