Utility supplies: Entry-level Ethernet switches for harsh environments
Energy management: Belden introduces entry-level industrial Ethernet switches for harsh environments. New Hirschmann SPIDER switches provide reliable communications with a strong price/performance ratio.

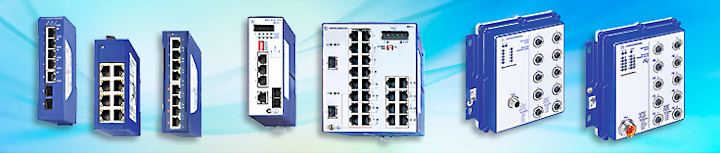

Energy network: Belden Inc., a provider of signal transmission solutions for mission-critical applications, has launched two new robust entry-level switches in its Hirschmann product range. The new SPIDER II 16TX EEC and SPIDER II 16TX/2DS-S EEC switches have a high port density, thus offering a cost-effective means for implementing industrial Ethernet technology. Both SPIDER switches can be used to implement flexible networking solutions for a wide range of industries, including automation, discrete manufacturing and transportation.
The switches have stable metal housing, can withstand extreme heat and cold, and are approved for use in environments with a high explosion risk. A second power supply may also be connected to further increase operational reliability. The switches, which can be mounted on a DIN rail and activated quickly via plug-and-play functionality, are suitable for connecting to the backbone or for networking linear and tree topologies.
“These two SPIDER switches provide cost-effective solutions for data communication in harsh industrial environments,” says Product Manager Sebastian Preiss, adding: “Thanks to the high port density, they also offer an excellent price/performance ratio.”
The 16TX/2DS-S EEC variant offers two optical dual-speed uplinks, which can be equipped with Small Form-factor Pluggable (SFP) transceivers for different optical fiber types. These uplinks, which support Gigabit Ethernet, ensure that no bottlenecks develop even for applications with high data volumes thus, guaranteeing smooth communication at all times. The switches can be cascaded as often as required, permitting implementation of decentralized networks with short transmission paths and hence considerably reducing the cost of cabling.
The switches each feature 16 RJ45 ports, which support fast Ethernet (10/100 BASE-TX). The version with optical uplinks additionally has two dual-speed ports (100/1000 BASE-FX) for Fast or Gigabit Ethernet SFP transceivers, which are also available as bidirectional (BIDI) variants and allow data to be transmitted in both directions over a single fiber. Distances of up to 120 km can be bridged with the uplinks via single or multimode fibers. Gigabit speed ensures that sufficient bandwidth is available even for applications with high volumes of data.
Other features of the two switches include an extended temperature range from -40°C to +70°C, high EMC (Electromagnetic Compatibility), shock and vibration resistance, a redundant 24V power supply, and stable metal housing, which allows space-saving assembly, thanks to its compact dimensions (66 x 138 x 111 mm). The switches also meet the requirements of industrial protection class IP30.
An early innovator in industrial Ethernet, Belden knows Industrial IT and is delivering the next generation of industrial networking solutions. Its global brands Hirschmann, GarrettCom and Tofino Security are leading the way in the adoption of industrial Ethernet. With a purpose-built portfolio, Belden’s wired, wireless and embedded products deliver the highest confidence of reliability, availability and security. In addition, excellent warranties and dedicated customer support minimize downtime, protect critical infrastructure and provide peace of mind.
Belden Inc., a global leader in high-quality, end-to-end signal transmission solutions, delivers a comprehensive product portfolio designed to meet the mission-critical network infrastructure needs of industrial, enterprise and broadcast markets. With innovative solutions targeted at reliable and secure transmission of rapidly growing amounts of data, audio and video needed for today’s applications, Belden is at the center of the global transformation to a connected world. Founded in 1902, the company is headquartered in St. Louis and has manufacturing capabilities in North and South America, Europe and Asia.
