Test equipment: Graphical digital megohmmeter with DataView Software, 10kV

Power measurement: AEMC 6550 high-end portable 10,000V or 10kV megohmmeter is for measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage.

Content Dam Up En Articles 2017 06 Test Equipment Graphical Digital Megohmmeter With Dataview Software 10kv Leftcolumn Article Thumbnailimage File

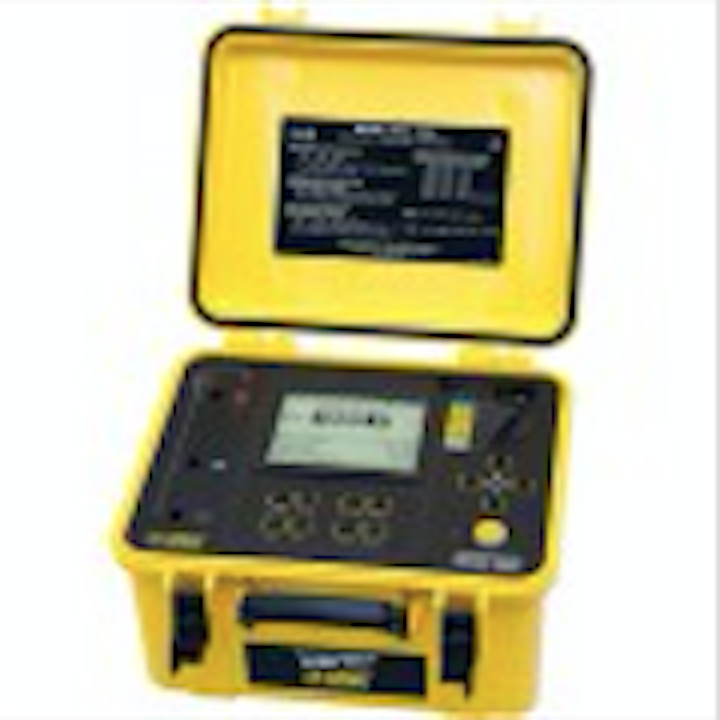

Test equipment: The AEMC 6550 Megohmmeter is a high-end portable measuring instrument intended for the measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 10,000V graphical insulation tester. The Model 6550 is packaged in a rugged case that is IP54 when closed. Test results and configuration information is provided on a graphical LCD screen as well as exportable through the use of DataView® software provided. This megohmmeter can operate on battery or AC power while testing.

The 6550 also offers the ability to program up to three step voltage profiles (from 40 to 10,000), each containing up to ten steps. There are also ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000 and 10,000V.

• Detection and measurement of input voltage, frequency, and current prior to running a test
• Measurements at a fixed test voltage of 500, 1000, 2500, 5000, 10,000VDC
• Ramp voltage measurements with a ramp from 40 to 1100V
• Step voltage measurements with steps from 40 to 10,000V
• Non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burn mode with no predefined stop point
• Digital filtering of insulation measurements
• Live measurement of the voltage to warn the operator of potential unsafe conditions
• Programmable thresholds to trigger audible
• Timed measurement duration checks
• Fuse protection with display indication of defective fuse condition
• Stores up to 80,000 measurements
• Optically-isolated USB communication for transfer onto PC and and report generation with the included DataView® software

• Acceptance testing and preventive maintenance
• Test motors, pumps, valves, cables, switch-gears and electrical wiring installations
• Continuity checks
• High resistance or absorption tests
• Spot reading tests
• Timed resistance measurements
• Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
• Multi-layer insulation testing (DD)
• Test old or water damaged installations over long time periods
• Motor insulation resistance measurements
