Voltage tester: Multi-function tester tests low voltage electrical installations

Voltage tester: Megger’s MFT70 provides all tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations.

Apr 26th, 2018
Content Dam Up En Articles 2018 04 Voltage Tester Multi Function Tester Tests Low Voltage Electrical Installations Leftcolumn Article Thumbnailimage File

Voltage tester: Megger now offers a multi-function tester that tests low voltage electrical installations to fulfill the requirements of NFPA70 and the National Electrical Code. The MFT70 provides all tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations.

Designed for use by electricians, equipment installers and engineers, lighting installers, testing and certification companies, as well as facilities maintenance companies and micro-generation installers, this new instrument can test for continuity, insulation resistance, ground and GFCI tripping. The battery powered MFT70 can be operated from a ladder-shelf or platform, around the neck, placed on the floor or in the hand.

Technical Specifications
• Fulfills the requirements of NFPA70 and the National Electrical Code
• Battery powered for easy portability
• Offers ground testing, GFCI testing, ramp test and continuity resistance testing
• Has an IEC 61010 CAT IV 300 V safety rating

A combined instrument offering testing options

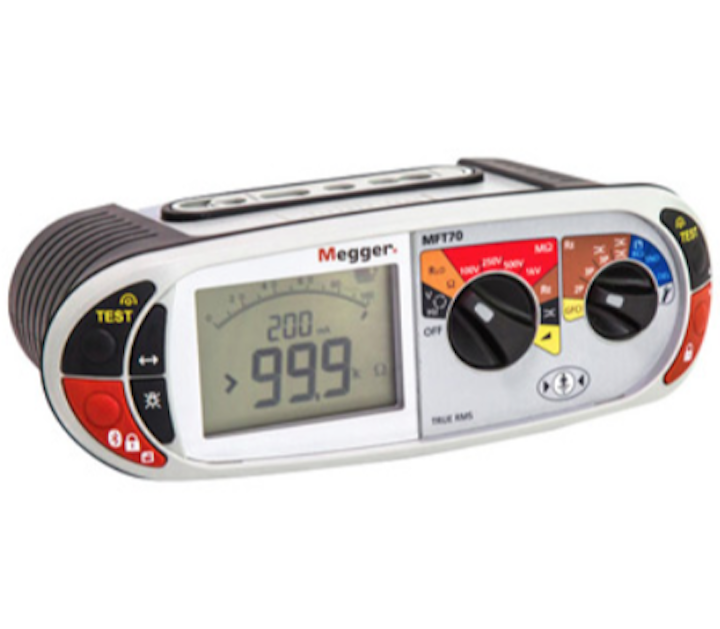

This compact, lightweight multi-function tester features a large backlit display and intuitive color-coded range selection for ease of use, dual function display with simple rotary dials showing all tests available and no hidden menus. Internal memory allows results to be stored on the go and transferred to a Bluetooth-enabled device.

The MFT70 is a combined instrument offering a variety of testing options, including ground testing with 2-pole, 3-pole, attached rod technique and stakeless with optional clamps; GFCI testing that meets the requirements of GFCI Type A as defined in the ANSI/UL 943 CSA C22.2 No. 144.1 and ANCE NMX-J-520 as well as perform a ramp test on a 6mA GFCI to ensure it trips under fault conditions; insulation testing at 100 V, 250 V, 500 V and 1000 V; and continuity resistance testing at 200 mA or 15 mA.

Designed for harsh environments
This tester is designed for harsh environments and reliability. It features a rubber over mold for extra protection and grip, IP54 protection against dust and water and an IEC 61010 CAT IV 300 V safety rating.

Each MFT70 includes a 3-wire leadset with probes and clips, test lead, ground test kit with spikes, switch probe, neck strap, batteries calibration certification, quickstart guide and user guide on CD.

Access our blog: http://us.megger.com/blog

Watch the latest videos: http://www.youtube.com/user/meggerUS

UPCOMING TRADESHOWS: EASA, 6/24-26, Milwaukee, WI, Booth 749

Reader Service Inquiries: Peg Houck; Megger; 2621 Van Buren Avenue, Norristown, Pa. 19403; peg.houck@megger.com; 610-676-8536.

ABOUT MEGGER:
Megger is one of the world’s leading manufacturers and suppliers of test and measurement equipment used within the electric power, building wiring and telecommunication industries. With research, engineering and manufacturing facilities in the USA, UK, Sweden and Germany, combined with sales and technical support in most countries, Megger is uniquely placed to meet the needs of its customers worldwide.
