Connector Corrector Technology for Use on Copper Conductor

Utility safety: Classic Connectors USA’s ClampStar CSR-0325L-007-P protects automatic splices on overhead, copper conductor sized from #6 - #2 AWG. In addition to torque limiting nuts, each unit is supplied with nickel-plated keepers and is prefilled with proprietary CC2 inhibitor to prevent galvanic corrosion.

Mar 6th, 2015
Content Dam Up En Articles 2015 03 Connector Corrector Technology For Use On Copper Conductor Leftcolumn Article Thumbnailimage File

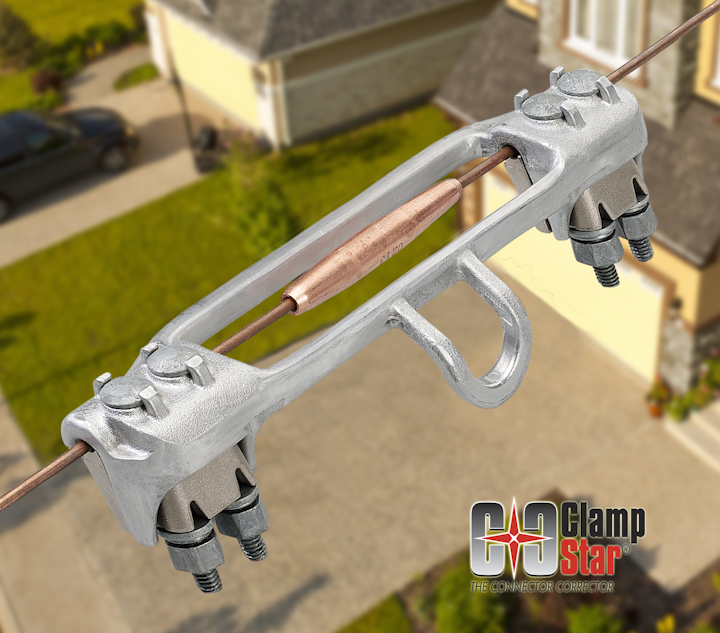

Classic Connectors USA’s ClampStar CSR-0325L-007-P protects automatic splices on overhead, copper conductor sized from #6 - #2 AWG. In addition to torque limiting nuts, each unit is supplied with nickel-plated keepers and is prefilled with proprietary CC2 inhibitor to prevent galvanic corrosion.

The unit weighs 1.75 lbs. and can easily be installed on an energized line with a hot-stick or gloves. ClampStar helps avoid potential catastrophes and expensive lawsuits resulting from failing overhead splices. In minutes, this eliminates risk and prevents connector failures before they occur, without costly replacement, repair or downtime. Additional sizes for use with copper are available for splices, suspension clamps, dead-ends and damaged conductor repair. ClampStar units are also available for use on all aluminum stranded conductors, e.g., ACSR, AAC, AAAC, ACAR, ACSS & fiber composite core.

For more information about Classic Connectors USA or other products, click here to go to Utility Products’ Buyers Guide.
