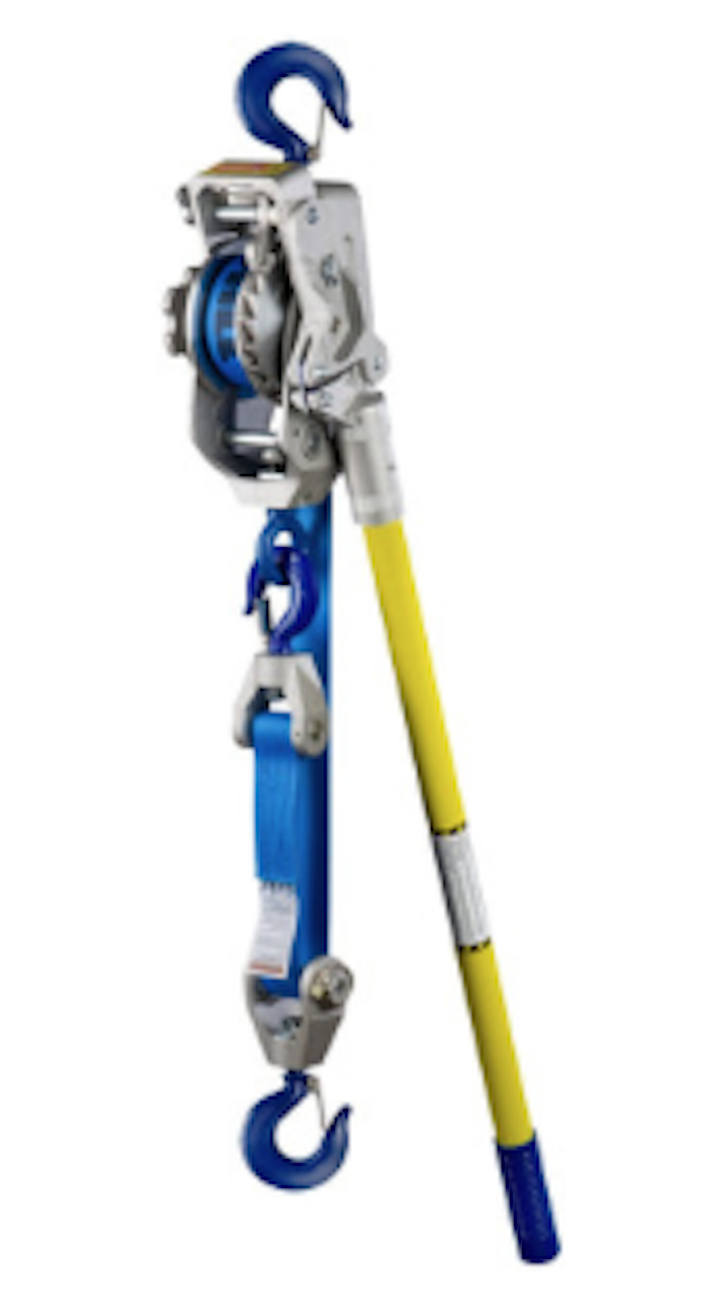

Construction equipment: LUG-ALL 2-ton web strap hoist

Line construction: J.L. Matthews’ medium frame web strap hoists are lightweight and provide extra pull strength for linemen requiring capacities ranging from 1-1/2 to 2 tons.

Content Dam Up En Articles 2015 08 Construction Equipment Lug All 2 Ton Web Strap Hoist Leftcolumn Article Thumbnailimage File

Line construction: Utility J.L. Matthews’ medium frame web strap hoists are lightweight and provide extra pull strength for linemen requiring capacities ranging from 1-1/2 to 2 tons. LUG-ALL® medium frame web strap hoists come with longer handles to make big line pulls easy.

Like all LUG-ALL web strap pullers, these tools are beautifully crafted to deliver easy, precise pulling performance on energized power lines.

Capacities ranging from:
• 1-1/2 to 2 ton with 4’-0” to 5’-1” pull distance (double line)
• 3/4 to 1 ton with 9’-4” to 11’-3” pull distance (single line)

All LUG-ALL Lineman’s Hoists meet the current (2005) ANSI/ASME B30.21-2005 standard for “manually lever operated hoists.”

• Capacity (ton): 2

• Double Pull Distance (Min./Max.): 27" / 4'-1"

• Capacity (ton): 1

• Single Pull Distance (Min./Max.): 19" / 9'-4"

• Strap Length: 10'

• Handle Length: 36"

• Net Weight: 15.5

• Product Number: 4A

For more information about J.L. Matthews or other products, click here to go to Utility Products’ Buyers Guide.
