Utility Testing: Insulation Resistance Tester Rated at 15 kV

Megger offers a versatile insulation resistance tester (IRT) rated at 15 kV. The MIT1525 measures motors and generators above 34,500V and equipment rated above 35 kV.

Content Dam Up En Articles 2015 08 Utility Testing Insulation Resistance Tester Rated At 15 Kv Leftcolumn Article Thumbnailimage File

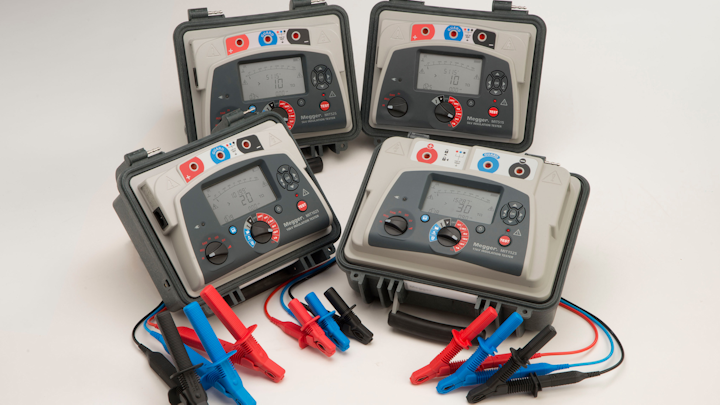

Test equipment: Megger offers a versatile insulation resistance tester (IRT) rated at 15 kV. The MIT1525 measures motors and generators above 34,500V and equipment rated above 35 kV. For applications that use cables, transformers, motors/generators, circuit breakers and bushings, the 15 kV MIT1525 is compact, lightweight and has rapid charge capabilities. It tests the insulation resistance of high-voltage power cables and buses, large motor/generator windings as well as substation transformers.

Engineered to ensure the highest precision possible, the MIT1525 offers 5 percent accuracy with a maximum resistance up to 3 TΩ. It maintains a CAT IV 1,000 V safety rating, allowing for dependable use in the widest range of applications.
