Test Equipment: Digital Insulation Meter Safeguards Employees, Equipment

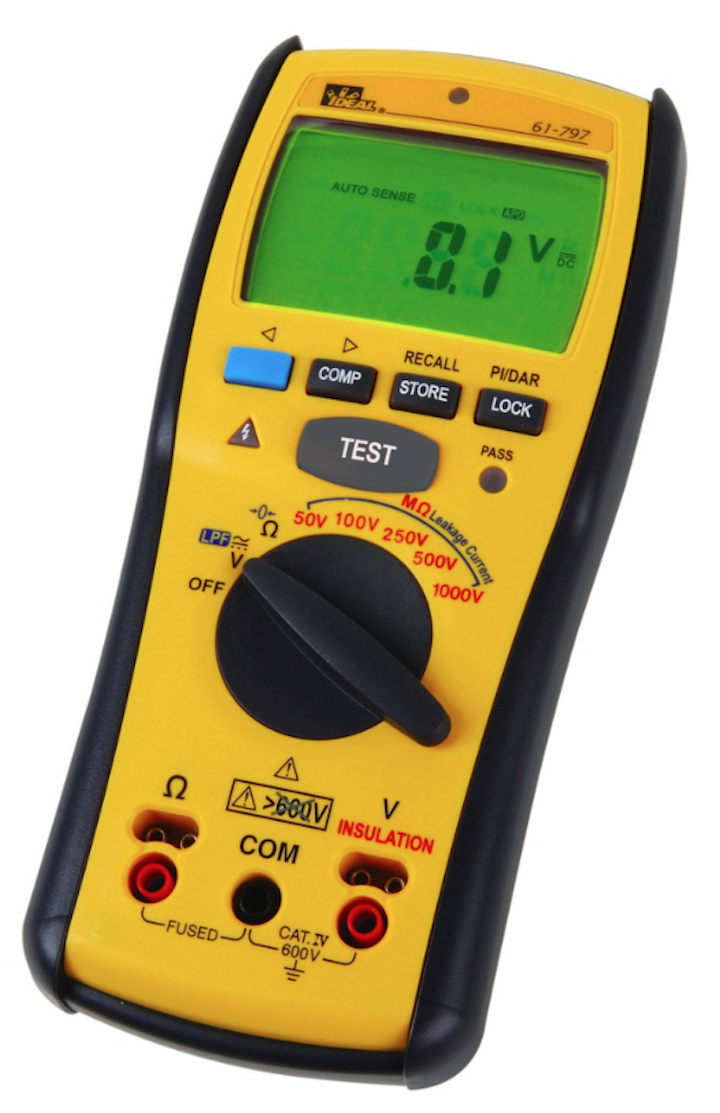

IDEAL’s 61-797 Digital Insulation Meter fights oil, dirt, excessive heat or cold, vibration and moisture that will damage electrical insulation.

Content Dam Up En Articles 2015 08 Test Equipment Digital Insulation Meter Safeguards Employees Equipment Leftcolumn Article Thumbnailimage File

Test equipment: Oil, dirt, excessive heat or cold, vibration and moisture will damage electrical insulation, threatening heavy equipment operation and endangering employee safety. Combat this serious problem with the IDEAL 61-797 Digital Insulation Meter, a rugged, industrial-grade tester designed for commissioning, routine troubleshooting and preventive maintenance to identify whether insulation is performing at an effective, safe level.

Periodic testing of insulation for signs of deterioration will spot breakdowns in electrical systems, generators, switchgear and motor windings before failure occurs. More importantly, insulation testing can prevent the dangerous occurrence of short circuits or short to grounds.

Using the 61-797, the technician will quickly determine the integrity of insulation in new and existing wiring by identifying capacitive, absorption and leakage current at multiple test voltages (50V, 100V, 250V, 500V and 1000V) and resistance up to 20G ohms. In addition, this tester measures earth-bond resistance to assure verification of the continuity of the protective bonding, automatically senses and displays ac/dc voltage to 600V, and calculates the Polarization Index (PI) and Dielectric Absorption Ratio (DAR).
