Utility equipment: Six-port industrial managed switches

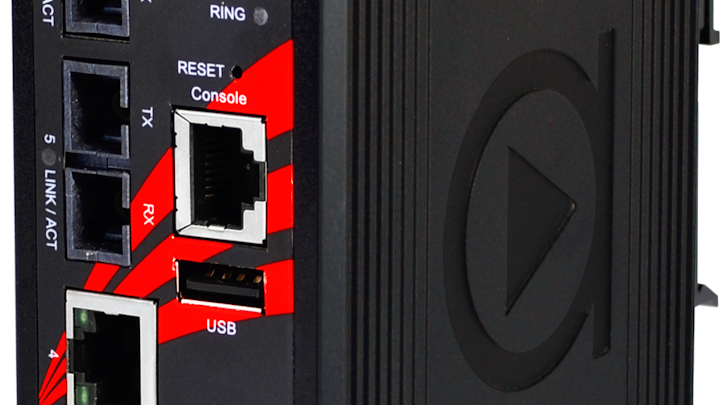

Utility supplies: Antaira Technologies’ LMX-0602 series is a cost effective 6-port industrial managed Ethernet switch with a 12~48VDC power input range support.
Utility equipment: Antaira Technologies is a developer and supplier of industrial device networking and communication product solutions for harsh environment applications and is proud to announce its expansion in the industrial networking infrastructure family with the LMX-0602 series.
Antaira Technologies’ LMX-0602 series is a cost effective 6-port industrial managed Ethernet switch with a 12~48VDC power input range support. Each unit is designed with four 10/100Tx Fast Ethernet RJ45 ports, and two 100Fx Fiber ports with SC or ST type connectors having an option for either multi-mode (2Km) or single-mode (30Km) for network distance expansion. The product series provides high EFT, surge (2,000VDC) and ESD (6,000VDC) protection. In addition, all units have a dual power input design with a reverse polarity protection and a relay warning function to alert maintainers when any ports break or power failures occur. This makes it ideal for applications needing high reliability and distance extension in any harsh environment.
Antaira’s new LMX-0602 industrial managed Ethernet switches have been perfectly designed to fulfill any industrial automation application in harsh or outdoor environments, such as, power/utility, solar grids, windmills, oil/gas platforms, mining infrastructures, factory or process control automation, ITS - roadway traffic control or monitoring, building facility outdoor infrastructure or security surveillance and access control systems.
This product series is pre-loaded with “Layer 2” network management software, of which, it supports the ease of use Web Console or Telnet using a serial console by CLI configuration. All Antaira managed switches provide the ring network redundancy function with RSTP and the ITU-G.8032 support, which eliminates the compatibility issue for any existing network concern. The built-in SNMP, VLAN, IGMP, and QoS features support network planners when increasing data transmission performance within a network. The external USB2.0 port allows users to export and save all the configuration settings. In addition, the flexible “customs label” feature allows network planners to name each connection port. This allows for easy remote management by being able to easily recognize field devices.
The LMX-0602 series is backed by a five-year warranty and the units are IP30 rated, compact, fanless, DIN-Rail and wall mountable. Each series is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and extreme temperatures. There are two operating temperature version models for either standard temperature (-10 ~ 70°C) or extended temperature (-40 ~ 75°C). The models have the dimensions of 46mm (W) x 99mm (D) x 142mm (H) and a unit weight less than 2 pounds.
About Antaira Technologies
Antaira Technologies is a global leading developer and supplier that provides high-quality industrial networking and communication product solutions. Since 2005, Antaira has offered a full spectrum of product lines that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs. Our product lines range from industrial Ethernet switches, industrial wireless devices, Ethernet media converters, and serial communication devices. Our vast professional experience allows us to deploy a wide array of products worldwide in mission-critical applications across various markets, such as, automation, transportation, security, oil & gas, power/utility, and medical.
