Power distribution: 50 KVA temporary power distribution system

Power distribution equipment: Larson Electronics has releases a temporary power distribution system that converts 480V AC three phase to 120/240 Delta/Delta electrical current.

Jun 16th, 2015
Content Dam Up En Articles 2015 06 Power Distribution 50 Kva Temporary Power Distribution System Leftcolumn Article Thumbnailimage File

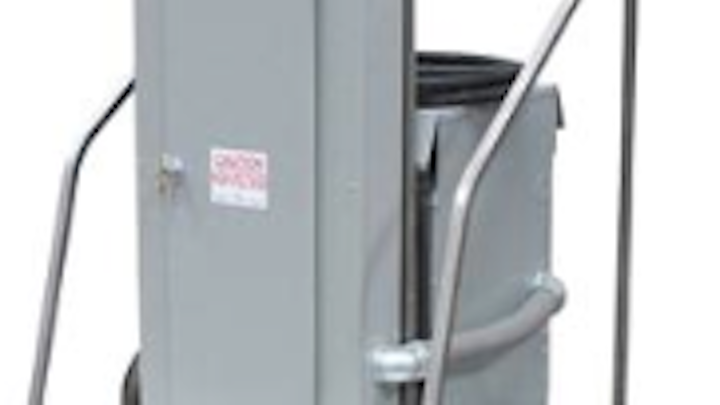

Power distribution: Larson Electronics has releases a temporary power distribution system that converts 480V AC three phase to 120/240 Delta/Delta electrical current. The MPD-480-50K-200MB-7X20-7X30-28X120.120-SSDC-W temporary power distribution system converts 480 volts AC three phase to 120/240 Delta/Delta electrical current.

This portable distribution system provides operators the ability to safely tap into 480V and distribute 120/240V to their equipment. This distribution assembly features 42 circuits enclosed within a NEMA 3R 200 amp panel and includes seven 20A double pole breakers, seven 30A double pole breakers, and twenty eight 20A single pole breakers. The transformer and load center assembly is mounted to a standard steel cart style frame resulting in an extremely stable, durable and mobile power distribution platform. This dolly cart style configuration is easy to move around the customer site and can be loaded easily on a truck or other conveyance for transport to different locations. Two run flat style tires and a cart style mounting platform provides easier substation mobility, and a center point lift eye that allows easy lifting with cable or chain hooks. This power distribution system is NEMA 3R rated and is ideal for indoor and outdoor applications.

Larson Electronics carries an extensive line of LED light towers, portable power distribution systems, explosion proof lights, portable work lights and industrial grade LED area lights.

For more information about Larson Electronics or other products, click here to go to Utility Products’ Buyers Guide.
