Positive linear voltage regulators for demanding applications

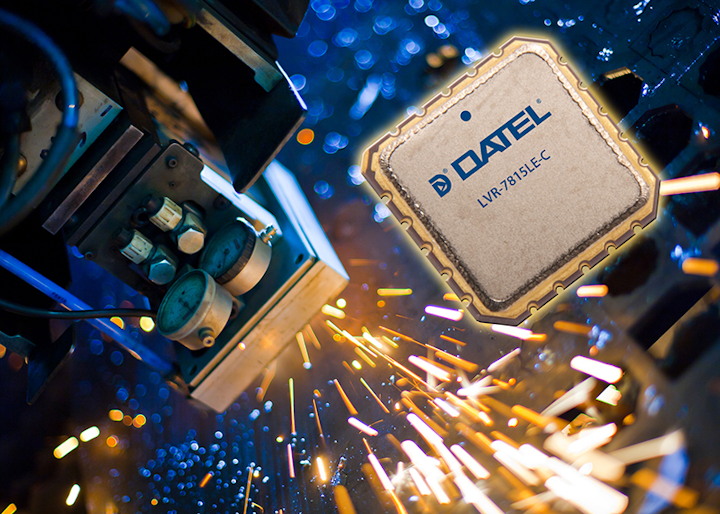

Voltage regulators: DATEL Inc. announces the LVR-7815 series, a new line of Linear Voltage Regulators that can deliver over 0.5 amps of output power.
Utility equipment: DATEL Inc. announces the LVR-7815 series, a new line of Linear Voltage Regulators that can deliver over 0.5 amps of output power. The LVR-7815 is housed in a hermetically sealed ceramic package that makes it impervious to humidity and the perfect choice to be used in applications where humidity is a concern.
The LVR-7815 is a 15 Volts positive fixed voltage regulator. Each unit is 100 percent tested for all grades and across one of three standard temperature ranges: 0 to +70ºC; –40 to +100ºC; –55 to +125ºC.
All protective features are designed into the circuit including thermal shutdown, current limiting, and safe–area control. The LVR-7815 regulators are internally trimmed to provide a nominal voltage accuracy of 1%. Other output voltages, ranging from +1.8V, +2.4V, +5V, are also available.
All the LVR-7815 grades are manufactured on the same production line at DATEL’s USA facility, which is certified to MIL-PRF-38534 standards. The device is available in a commercial version as well as military versions. RoHS and non-RoHS configurations are available.
In addition to our standard product offerings, DATEL is a leader in providing System in a Package Solutions (SIP) for all special applications and Pin-to-Pin replacements for any existing or obsolete component.
