Energy management: DC-DC and AC-DC converter modules and battery charger

Power management: Shaefer’s compact, rugged 3U design provides high-density, space saving solutions across all markets.

Jul 10th, 2015
Content Dam Up En Articles 2015 07 Energy Management Dc Dc And Ac Dc Converter Modules And Battery Charger Leftcolumn Article Thumbnailimage File

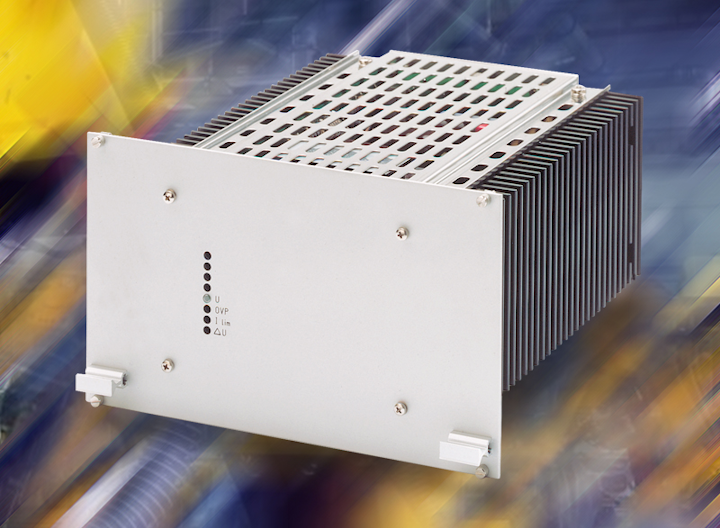

Utility supplies: Schaefer, Inc. announces the C/B 600 Series of DC-DC and AC-DC converter modules and battery charger (B600 models). The highly-reliable, compact and rugged 3U design uses industrial-grade components and provides a high-density, space saving solution for applications in industries such utility, oil/gas, automation, heavy industrial, military, telecom/datacom, alternative energy, transit/railway, process control, and power stations.

The ultra-high efficient C/B 600 Series delivers up to 500W of power and offers DC input voltage range of 10-380VDC with seven input range choices. AC input options are single-phase 115VAC or 230VAC (with or without PFC) or three-phase inputs of 3x200VAC. These modules are single output and are available in 12 standard ranges from 5-400VDC. All outputs are adjustable and tightly regulated to 0.2% (load) and 0.1% (line). Featuring natural convection cooling and a standard operating temperature range of 20°C to +75°C (derate 2.5%/°C from +55°C), with an option for -40°C to +75°C.

Modules are housed in an industry-standard 3U form factor for insertion into 19 in. sub-racks or optional wall, chassis and DIN-Rail mounting are available. All models have comprehensive protection circuitry including over-voltage protection, current limit protection on the output, and thermal shutdown with auto restart. Options include parallel/redundant operation, inhibit, Power-OK/DC-OK alarms, system reset signaling, active current sharing and programming/monitoring functions, etc. Mechanical and electrical modifications are readily available.
