Construction equipment: Download HDD bore information directly to mobile phones, tablets

Utility equipment: Subsite Electronics, a Charles Machine Works Company, introduces the new TSR mobile software to download horizontal directional drilling (HDD) bore information from Subsite TK HDD guidance systems directly to mobile telephones or tablets.

Content Dam Up En Articles 2015 07 Construction Equipment Download Hdd Bore Information Directly To Mobile Phones Tablets Leftcolumn Article Thumbnailimage File

Utility supplies: Subsite Electronics, a Charles Machine Works Company, has introduced TSR mobile software to download horizontal directional drilling (HDD) bore information from Subsite TK Series HDD Guidance System directly to smartphones and tablets.

TSR mobile software enables drillers to generate an as-built report as soon as the pilot bore is completed. Information can be sent to and viewed on Android mobile phones and tablets, as well as Windows-based computers and Mac OSX.

TSR mobile software is shipped with each TK HDD guidance system sold and can be downloaded at no cost from the Subsite Electronics website at for use with TK equipment already in service.

TSR mobile software profiles include a pitch-based graph of bore data. To log a data point, the operator simply pushes a button on the guidance system. The profile is calculated by rod distance as the downhole tool progresses, documenting tool location and pitch, as well as field terrain.

Reports can be immediately e-mailed to the office or the customer via smartphone or tablet.

“The TSR mobile software speeds production by replacing the manual bore log, which is time-consuming and creates the opportunity for error,” said John Bieberdorf, product manager, HDD guidance systems, Subsite Electronics. “From the business aspect, sending reports directly from the field can improve cash flow because many customers will not pay for a project until as-builts are provided.”

TSR mobile software and the Subsite TK Series products make the ultimate walk-over HDD guidance system.

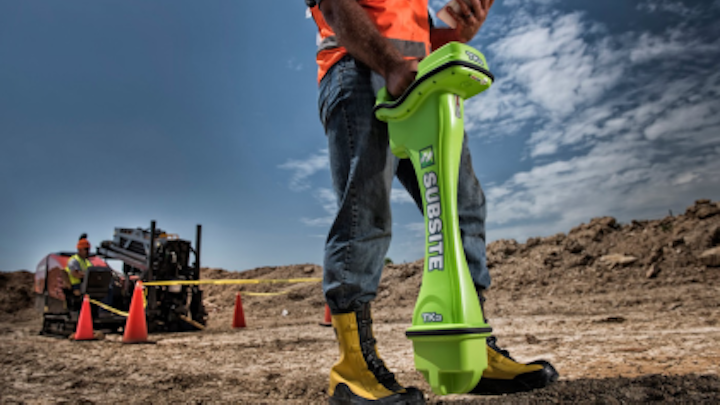

TK HDD guidance systems are available in three models to fit specific drilling needs. TK systems filter out signal interference present on many work sites to provide accurate tracking of the bore head. The TK Series is the only HDD guidance system with dual locating modes (“walkover” and “drill-to”). Easy-to-understand, high-contrast graphics are legible even in bright light, and the TSR remote display can be mounted on the drilling unit to suit the driller’s preferences.

About Subsite® Electronics
Subsite® Electronics, a Charles Machine Works Company, is committed to providing underground construction professionals the most comprehensive suite of electronic products in the industry, including utility locators, Horizontal Directional Drilling (HDD) guidance equipment and equipment machine controls. By utilizing innovative technologies, extensive market feedback and outstanding customer support, Subsite Electronics has established itself as the premier source of electronic technology to support the installation or maintenance of underground pipe and cable.

About Charles Machine Works
Established in 1902, Charles Machine Works, an employee-owned company, founded in Perry, Oklahoma, is the only manufacturer and global distributor that solely exists to make underground utility construction profitable. Our family of companies includes Ditch Witch®, Subsite® Electronics, DW/TXS®, HammerHead®, Radius® HDD, American Augers®, Trencor® and MTI® Equipment.
