Safety products: Non-Metallic Enclosures are durable, reliable

Safety products: Stahlin Non-Metallic Enclosures adds 24 in. x24 in. size to its product family of PolyStar Polycarbonate Enclosures.

Content Dam Up En Articles 2015 05 Safety Products Non Metallic Enclosures Are Durable Reliable Leftcolumn Article Thumbnailimage File

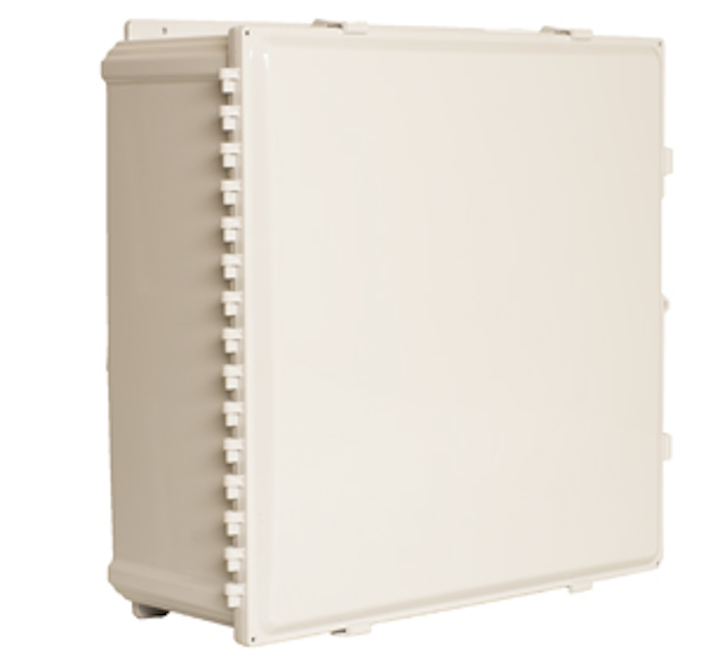

Utility safety: Stahlin Non-Metallic Enclosures, manufacturer of the world's most frequently specified fiberglass enclosure products, has added a 24 in. x24 in. PolyStar Polycarbonate Enclosure with Opaque and Clear Cover Option to its family of the most durable and reliable polycarbonate enclosures available on the market.

PolyStar Enclosures are intended to be utilized for outdoor and indoor applications. Made entirely in the U.S.A., all PolyStar polycarbonate enclosures can withstand rain, sleet, snow, splashing, hose directed water and submersion while providing superior impact and flame protection.

PolyStar Enclosures provide the highest flame retardant rating available - UL 94 - Flame Rating ­ 5VA.

PolyStar Enclosures are rated for NEMA Types- 3R, 4, 4X, 6P, 12 and IP66, IP67 and IP68 per IEC 60529.

PolyStar Enclosures are resistant to low and high temperature exposure from -20°F to +240°F.

PolyStar Series Features:
• Now available in 8 standard sizes: 6x6, 8x6, 10x8, 12x10, 14x12, 16x14, 18x16 and 24 x 24
• Latches and hinges do not penetrate enclosure
• Easy to remove lid
• High performance inserts
• Integrated lock hasp
• Flush-fit side mount swing panel and DIN rail system
• Molded in bosses
• Multi-directional mounting feet
• Rated Type 3R, 4, 4X, 6P, 12
• Rated IEC IP66, IP67, IP68
• UL/cUL Approved

Side Mount Solutions:
• € Increases usable space
• € Provides more mounting options- DIN rails - side panels
• € Aluminum slot nuts - variable mounting heights - #10-32 machine screw

Panel Systems

Sub-panel Mounting Solution:
• Revolutionary design
• Variable height mounting
• Swings open from any side
• Panel locks into open position
• Mounting holes are standard JIC
• 0.08" Aluminum Panels
• Back Panels are standard JIC

For more information about Stahlin or other products, click here to go to Utility Products’ Buyers Guide.
