Utility equipment: High Gigabit 12-Port unmanaged switches

Utility supplies: Antaira Technologies launches high Gigabit 12-Port unmanaged switches.

Content Dam Up En Articles 2015 05 Utility Equipment High Gigabit 12 Port Unmanaged Switches Leftcolumn Article Thumbnailimage File

Utility equipment: Antaira Technologies is a developer and supplier of industrial networking devices and communication solutions for harsh environmental applications and announces the expansion of its industrial networking infrastructure family with the introduction of the LNX-1202G-SFP and LNX-1204G-SFP series.

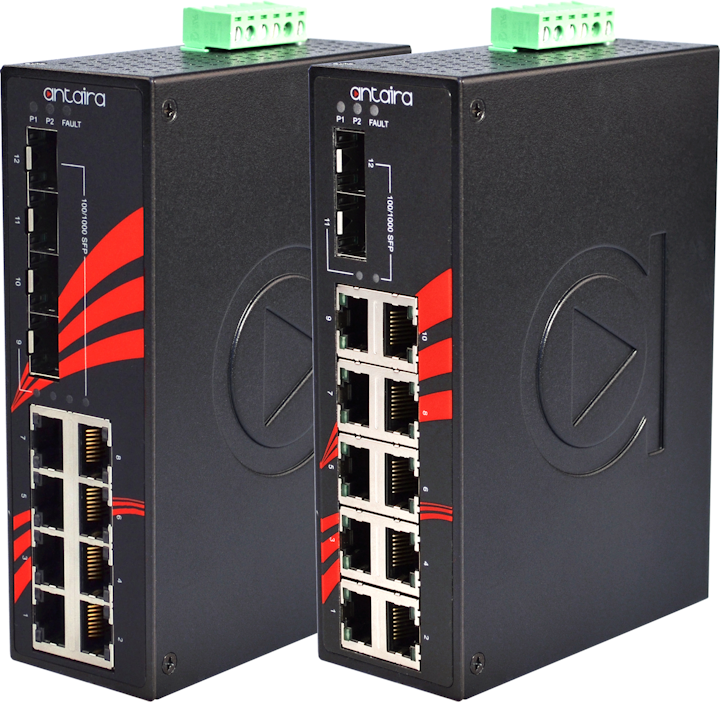

Antaira’s new LNX-1202G-SFP and LNX-1204G-SFP industrial Gigabit unmanaged Ethernet switches offer the highest density of Gigabit Ethernet port connectivity in the market. The combination of SFP fiber and RJ45 copper with high Gigabit port count connectivity have been designed to help fulfill special needs for security, transportation, and solar and wind power industries. These switches are ideal for any outdoor application with an extreme ambient weather environment.

The LNX-1202G-SFP and LNX-1204G-SFP series are the latest 12-port industrial grade Gigabit unmanaged Ethernet switch additions to Antaira’s already expansive product line. The LNX line supports a wide power input range of 12~48VDC. Each unit is designed with all RJ45 ports supporting Gigabit Ethernet speeds to provide maximum bandwidth capabilities. The LNX-1202G-SFP series supports 10*10/100/1000Tx ports and 2*100/1000 SFP slots; whereas, the LNX-1204G-SFP series supports 8*10/100/1000Tx ports and 4*100/1000 SFP slots. The SFP fiber ports are able to support any type of fiber connection; Multi-mode or Single-mode for short or long haul applications. These SFP ports can also support dual rate speeds, meaning either 100Fx or 1000Fx fiber connections are supported.

These new switch models provide high EFT, surge (2,000VDC), and ESD (6,000VDC) protection. The devices also have a dual power input design with reverse polarity protection. Additionally, there is a built-in relay warning function to alert maintainers when power failures occur. The LNX-1202G-SFP and LNX-1204G-SFP are ideal for applications that require high bandwidth, reliability, or distance extension.

The LNX-1202G-SFP and LNX-1204G-SFP series are backed by a five year warranty with an IP30 rated, compact, fanless, DIN-Rail and wall mountable design. Each product is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and temperature extremes. Operating temperature version options include a standard -10 ~ 70°C model range or an extended -40 ~ 75°C model range. The models conform to the following dimensions of 46mm (W) x 99mm (D) x 142mm (H) and a unit weight of 1.7 pounds.

About Antaira Technologies
Antaira Technologies is a global leading developer and supplier that provides high-quality industrial networking and communication product solutions. Since 2005, Antaira has offered a full spectrum of product lines that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs. Our product lines range from industrial Ethernet switches, industrial wireless devices, Ethernet media converters, and serial communication devices. Our vast professional experience allows us to deploy a wide array of products worldwide in mission-critical applications across various markets such as power/utility, automation, transportation, security, oil & gas, and medical.
