Utility testing: Dual Channel Time Domain Reflectometer

Cable test equipment: Megger’s advanced dual channel Time Domain Reflectometer is for testing all types of cable.

Feb 25th, 2015
Content Dam Up En Articles 2015 02 Utility Testing Dual Channel Time Domain Reflectometer Leftcolumn Article Thumbnailimage File

Test equipment: Megger’s advanced dual channel Time Domain Reflectometer (TDR) is for testing all types of cable.

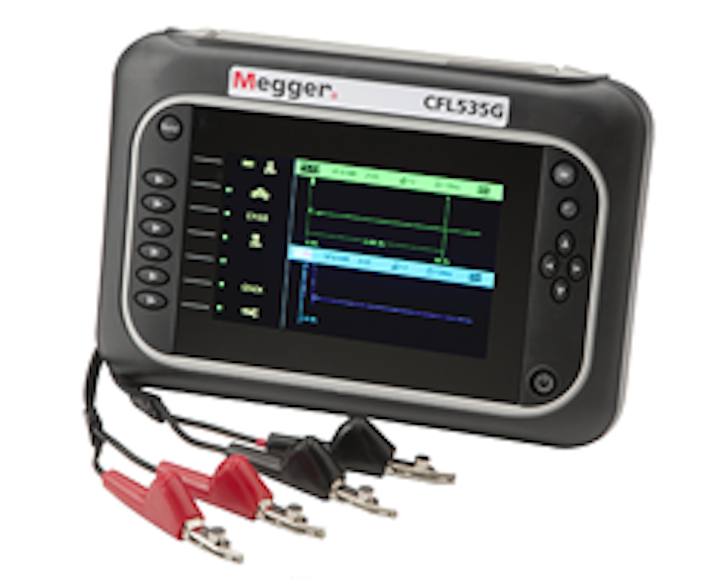

The CFL535G is a dual channel, compact TDR for locating faults on metallic cables. It has a minimum resolution of 0.1m/0.3ft and a 20km/60kft maximum range depending on Velocity factor selected and cable type.
• Comprehensive dual channel capability with dual aspect display.
• AUTO set up for instant use.
• Ultra fast pulse for near-end fault
• identification.
• One button press xpert guidance to potential fault.
• IP54 rating offers real life working conditions.
• Designed for use on all metallic cable pairs.
• Toughened and fully bonded LCD screen
• viewable in all light conditions.
• CAT III 300 V

For more information about Megger or other products, click here to go to Utility Products’ Buyers Guide.
