Test products: Advanced cable fault locator

Utility testing: Megger’s PFL Series of cable fault locators provide a versatile, portable solution for advanced identification, prelocation, and pinpointing of cable faults on a wide variety of cable types.

Content Dam Up En Articles 2016 01 Test Products Advanced Cable Fault Locator Leftcolumn Article Thumbnailimage File

Test products:Megger’s PFL Series of cable fault locators provide a versatile, portable solution for advanced identification, prelocation, and pinpointing of cable faults on a wide variety of cable types.

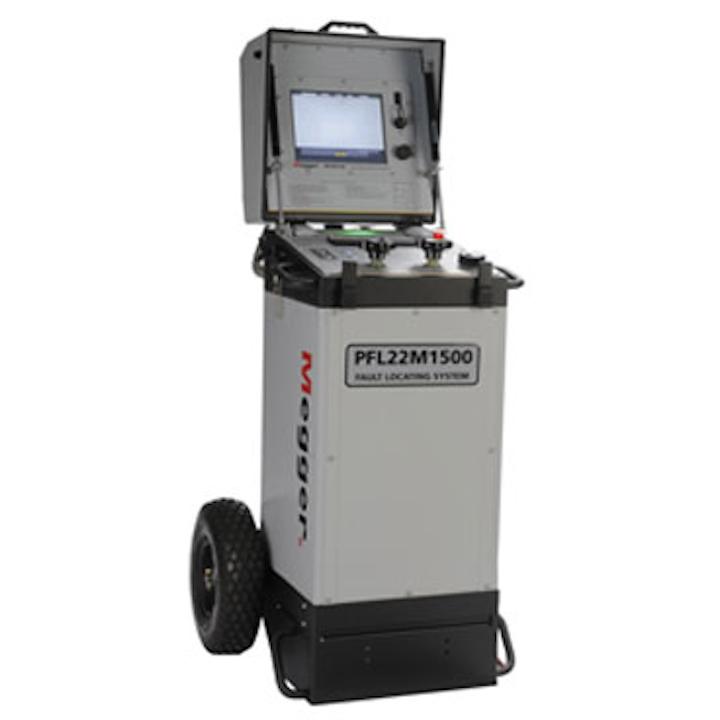

The PFL22M1500 and PFL32M1500 perform DC insulation testing up to 20 kV and 32 kV, 8/16kV and 16/32 arc reflection with 1500 joules surge output, arc reflection plus, differential arc reflection and impulse current and pulse echo modes of fault prelocation.

The unit incorporates the MTDR100, which offers auto ranging, a comprehensive cable library and is user friendly with a single selection knob.

• DC insulation testing
• Fault conditioning
• Arc reflection, arc reflection plus, differential arc reflection, impulse current and pulse echo prelocation methods
• Ergonomically designed control panel
• 10.4 inch integrated color screen TDR
• Optional inverter available with PFL22

For more information about Megger or other products, click here to go to Utility Products’ Buyers Guide.
