Safety lighting: 30-ft. horizontal light mast

Work light: Larson Electronics releases a 30-ft. horizontal light mast equipped with four LED lights.

Content Dam Up En Articles 2016 01 Safety Lighting 30 Ft Horizontal Light Mast Leftcolumn Article Thumbnailimage File

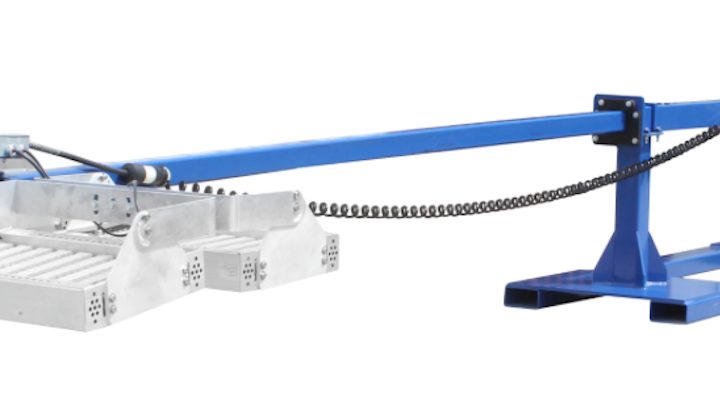

Utility equipment: Larson Electronics announces the release of a 30-ft. horizontal light mast that provides a safe and effective way for operators to quickly deploy lights, cameras, and other equipment. The LM-30-HZ-4X400LTL-LED-EW-WB horizontal light mast features a two section assembly that extends to 30 feet for maximum area coverage and collapses to 17 feet when not in use. The mast is extended and retracted using an included electric motor and lead screw. This tower is constructed of square steel tubing with a lower section seventeen feet in length and four inches in diameter and an upper section thirteen feet in length and three inches in diameter. This horizontal light mast is powder coated with a glossy blue finish for corrosion resistance and aesthetics. The mast is extended to its full horizontal position by using an included 1,000 lbs. hand winch with ¼ inch cable. This mast is equipped with pockets on each end for transporting with a skid loader, or other heavy duty machinery. This mast is typically mounted to trailers or other stable surfaces with a twelve inch square, ½ inch thick mounting base plate with pre-drilled holes to accept four ¾” bolts.

The lighting system on this unit is comprised of four 400 watt LED lamps, each producing 52,000 lumens of light. These flood lights produce a wide flood light pattern with a combined total of 1,600 watts and 508,000 lumens of light. The entire lighting system is connected to the power source by a 4-switch control box. Each light head is on an individual circuit and can be powered on and off independently. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the telescoping section of the mast which provides a strong and stable platform for the 400 watt LED light fixtures.

“Larson’s new horizontal masts allow users to extend the reach of equipment in locations where it seems impractical,” said Rob Bresnahan with “This mast is equipped with four high intensity LED lights that are extended and retracted using an electric motor.”

Larson Electronics specializes in portable industrial lighting equipment, high mast light towers, explosion proof light fixtures, power distribution systems, LED lighting and more.
